SDM109N-R68MF - MOLDING TYPE DIP INDUCTORS

Download the SDM109N-R68MF datasheet PDF. This datasheet also covers the SDM109N variant, as both devices belong to the same molding type dip inductors family and are provided as variant models within a single manufacturer datasheet.

Features

  • : a) Shielded construction b) Frequency up to 1MHz NOTE : Specifications subject to change without notice. Please check our website for latest information. 18.04.2008.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SDM109N_Superworld.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SDM109N-R68MF
Manufacturer Superworld
File Size 315.16 KB
Description MOLDING TYPE DIP INDUCTORS
Datasheet download datasheet SDM109N-R68MF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SDM100K30L SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
SDM1050LCS Ultra Low VF Schottky Rectifier PAN JIT
SDM10C60FB2 600V 10A IPM Silan Microelectronics
SDM10C60TA2 600V/10A 3-PHASE FULL-BRIDGE DRIVER Silan Microelectronics
SDM10G60FB 600V/10A 3-PHASE FULL-BRIDGE DRIVER Silan Microelectronics

Other Datasheets by Superworld

Part Number Description
SDM109N-R25MF MOLDING TYPE DIP INDUCTORS
SDM109N-R50MF MOLDING TYPE DIP INDUCTORS
SDM109N-R56MF MOLDING TYPE DIP INDUCTORS
SDM109N-R80MF MOLDING TYPE DIP INDUCTORS
SDM109N MOLDING TYPE DIP INDUCTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

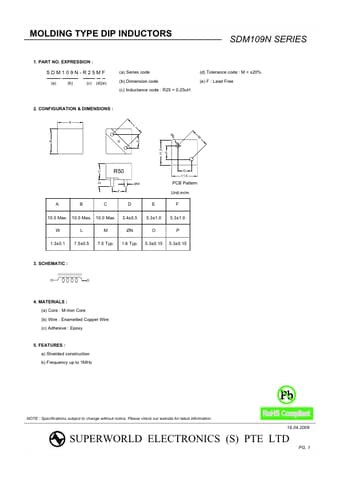

www.DataSheet.co.kr MOLDING TYPE DIP INDUCTORS 1. PART NO. EXPRESSION : SDM109N SERIES SDM109N-R25MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : R25 = 0.25uH (d) Tolerance code : M = ±20% (e) F : Lead Free 2. CONFIGURATION & DIMENSIONS : A L ØN M B E 11.5 R50 ØW F P O 11.5 C PCB Pattern Unit:m/m A 10.5 Max. W 1.3±0.1 D B C D 3.4±0.5 ØN 1.6 Typ. E 5.3±1.0 O 5.3±0.15 F 5.3±1.0 P 5.3±0.15 10.5 Max. 10.0 Max. L 7.5±0.5 M 7.5 Typ. 3. SCHEMATIC : 4. MATERIALS : (a) Core : M-Iron Core (b) Wire : Enamelled Copper Wire (c) Adhesive : Epoxy 5. FEATURES : a) Shielded construction b) Frequency up to 1MHz NOTE : Specifications subject to change without notice. Please check our website for latest information. 18.04.
