STRC5HTF - HIGH FREQUENCY TRANSFORMER

Superworld Electronics

Datasheet Details

Part number	STRC5HTF
Manufacturer	Superworld Electronics
File Size	138.51 KB
Description	HIGH FREQUENCY TRANSFORMER
Datasheet	STRC5HTF Datasheet

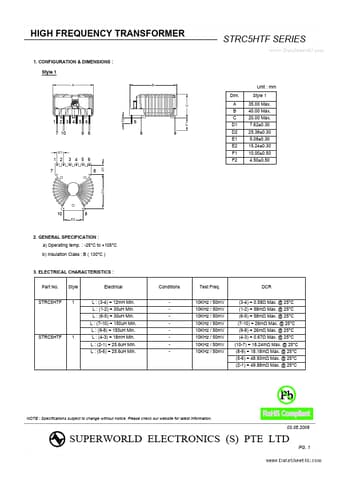

Additional preview pages of the STRC5HTF datasheet.

📁 Similar Datasheet

STR-4A60S - Sensitive Gate Triacs (SemiWell Semiconductor)
STR-4A60S - Sensitive Gate Triacs (TGS)
STR-50115 - STR50115 (ETC)
STR-50330 - Hybrid IC Voltage Regulator (Sanken electric)
STR-53041 - Hybrid IC Voltage Regulator (Sanken electric)
STR-54041 - Hybrid IC Voltage Regulator Module (Sanken electric)
STR-A27 - Stereo FM-AM Receiver Service Manual (Sony)
STR-A6000 - Off-Line PWM Controllers (Sanken)
STR-A6000H - STR-A6000H Series PWM Off-Line Switching Regulator ICs (Sanken Electric)
STR-A6051M - Off-Line PWM Controllers (Sanken)

Other Datasheets by Superworld Electronics

Full PDF Text Transcription

Click to expand full text

HIGH FREQUENCY TRANSFORMER 1. CONFIGURATION & DIMENSIONS : Style 1 A B STRC5HTF SERIES www.DataSheet4U.com Unit : mm Dim. C Style 1 35.00 Max. 40.00 Max. 20.00 Max. 7.62±0.30 25.38±0.30 5.08±0.30 15.24±0.30 10.00±0.50 4.50±0.50 A B C F1 1 2 3 4 5 6 7 10 9 8 F2 6 8 9 D1 D2 E1 E2 E1 F1 3 4 5 6 8 D1 1 2 7 F2 10 E2 9 2. GENERAL SPECIFICATION : a) Operating temp. : -25°C to +105°C b) Insulation Class : B ( 130°C ) 3. ELECTRICAL CHARACTERISTICS : Part No. STRC5HTF Style 1 Electrical L : (3-4) = 12mH Min. L : (1-2) = 30uH Min. L : (6-5) = 30uH Min. L : (7-10) = 150uH Min. L : (9-8) = 150uH Min. STRC5HTF 1 L : (4-3) = 18mH Min. L : (2-1) = 25.6uH Min. L : (5-6) = 25.6uH Min. Conditions Test Freq.
