TN06L - N-Channel Enhancement-Mode Vertical DMOS Power FETs

TN06L Description

" *upertexinc.I N-Channel Enhancement-Mode Vertical DMOS Power FETs TN06L Ordering Information BVoss I BVOGS 20V RDS(ON) (max) 0.750 40V 0.75.

TN06L Features

* o Freedom from secondary breakdown o Low power drive requirement o Ease of paralleling o Low CISS and fast switching speeds o Excellent thermal stability o Integral Source-Drain diode o High input impedance and high gain o Complementary N- and P-Channel devices VGS(th) (max) 1.SV 1.SV T0-39 TNOS02

📥 Download Datasheet

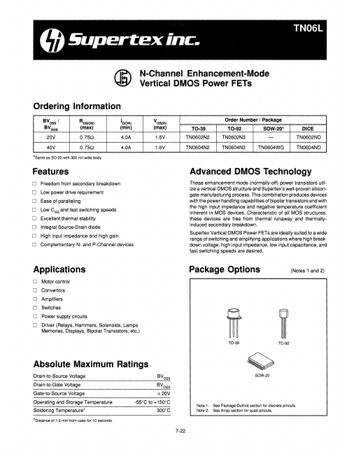

Preview of TN06L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TN06L
Manufacturer
Supertex
File Size
225.81 KB
Datasheet
TN06L-Supertex.pdf
Description
N-Channel Enhancement-Mode Vertical DMOS Power FETs
