DN3135N8-G - N-Channel Depletion-Mode Vertical DMOS FETs

Download the DN3135N8-G datasheet PDF. This datasheet also covers the DN3135 variant, as both devices belong to the same n-channel depletion-mode vertical dmos fets family and are provided as variant models within a single manufacturer datasheet.

Description

The Supertex DN3135 is a low threshold depletion-mode (normally-on) transistor utilizing an advanced vertical DMOS structure and Supertex’s well-proven silicon-gate manufacturing process.

Features

  • High input impedance.
  • Low input capacitance.
  • Fast switching speeds.
  • Low on-resistance.
  • Free from secondary breakdown.
  • Low input and output leakage.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DN3135_Supertex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DN3135N8-G
Manufacturer Supertex
File Size 339.85 KB
Description N-Channel Depletion-Mode Vertical DMOS FETs
Datasheet download datasheet DN3135N8-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DN350T05 350V NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR Diodes Incorporated

Other Datasheets by Supertex

Part Number Description
DN3135 N-Channel Depletion-Mode Vertical DMOS FETs
DN3135K1-G N-Channel Depletion-Mode Vertical DMOS FETs
DN3125 N-Channel Depletion-Mode Vertical DMOS FETs
DN3145 N-Channel Depletion-Mode Vertical DMOS FETs
DN3145N8-G N-Channel Depletion-Mode Vertical DMOS FETs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

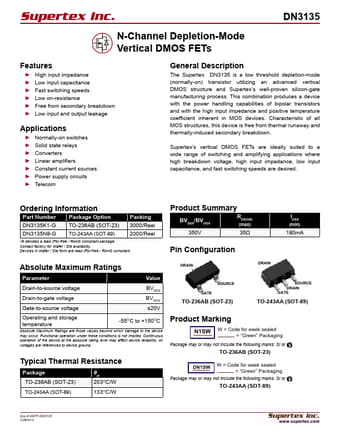

Supertex inc. DN3135 N-Channel Depletion-Mode Vertical DMOS FETs Features ►► High input impedance ►► Low input capacitance ►► Fast switching speeds ►► Low on-resistance ►► Free from secondary breakdown ►► Low input and output leakage Applications ►► Normally-on switches ►► Solid state relays ►► Converters ►► Linear amplifiers ►► Constant current sources ►► Power supply circuits ►► Telecom General Description The Supertex DN3135 is a low threshold depletion-mode (normally-on) transistor utilizing an advanced vertical DMOS structure and Supertex’s well-proven silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and with the high input impedance and positive temperature coefficient inherent in MOS devices.
