DN2640ND - N-Channel Depletion-Mode Vertical DMOS FETs

Download the DN2640ND datasheet PDF. This datasheet also covers the DN2640 variant, as both devices belong to the same n-channel depletion-mode vertical dmos fets family and are provided as variant models within a single manufacturer datasheet.

Features

  • High input impedance Low input capacitance Fast switching speeds Low on resistance Free from secondary breakdown Low input and output leakage.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DN2640-Supertex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DN2640ND
Manufacturer Supertex
File Size 37.42 KB
Description N-Channel Depletion-Mode Vertical DMOS FETs
Datasheet download datasheet DN2640ND Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DN2625 N-Channel Depletion-Mode Vertical DMOS FET Microchip
DN200 NPN Silicon Transistor AUK
DN200F NPN Silicon Transistor AUK
DN2450 Vertical DMOS FET Microchip
DN2470 Vertical DMOS FET Microchip

Other Datasheets by Supertex

Part Number Description
DN2640N3 N-Channel Depletion-Mode Vertical DMOS FETs
DN2640 N-Channel Depletion-Mode Vertical DMOS FETs
DN2624 N-Channel Depletion-Mode Vertical DMOS FETs
DN2624N3 N-Channel Depletion-Mode Vertical DMOS FETs
DN2624ND N-Channel Depletion-Mode Vertical DMOS FETs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

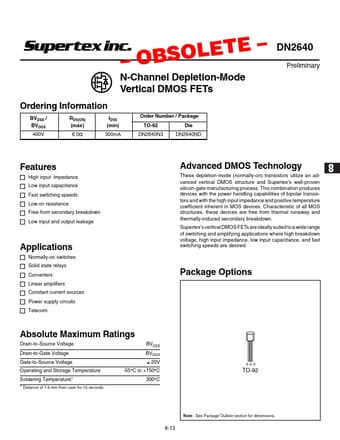

– OBSOLETE – DN2640 Preliminary N-Channel Depletion-Mode Vertical DMOS FETs Ordering Information BVDSX / BVDGX 400V RDS(ON) (max) 6.0Ω IDSS (min) 300mA Order Number / Package TO-92 Die DN2640N3 DN2640ND Features High input impedance Low input capacitance Fast switching speeds Low on resistance Free from secondary breakdown Low input and output leakage Applications Normally-on switches Solid state relays Converters Linear amplifiers Constant current sources Power supply circuits Telecom Absolute Maximum Ratings Drain-to-Source Voltage Drain-to-Gate Voltage Gate-to-Source Voltage BVDSX BVDGX ± 20V Operating and Storage Temperature -55°C to +150°C Soldering Temperature* * Distance of 1.6 mm from case for 10 seconds.
