SGP100N042 - 100V N-Channel MOSFET

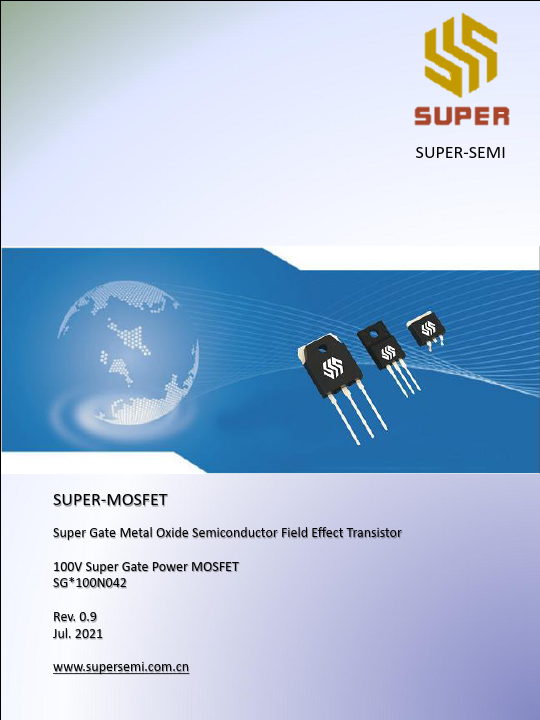

The SGP100N042 by Super Semiconductor is a 100V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SGP100N042
Manufacturer	Super Semiconductor
File Size	511.52 KB
Description	100V N-Channel MOSFET
Datasheet	SGP100N042-SuperSemiconductor.pdf

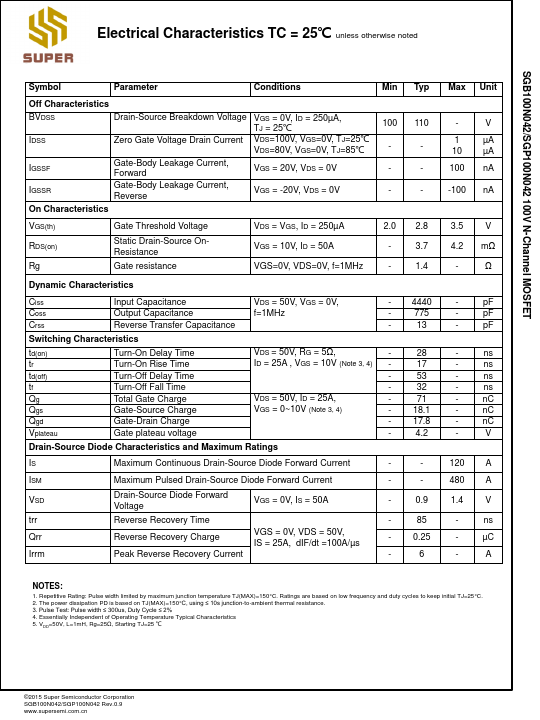

Additional preview pages of the SGP100N042 datasheet.

The SG-MOSFET uses advanced trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance.

VDS 100V.
ID (at Vgs=10V) 120A.
Typ. RDS(on) (at Vgs=10V) 3.7mΩ.
Low Gate Charge (typ. Qg = 71nC).
100% avalanche tested SGB100N042 SGP100N042 Absolute Maximum Ratings Symbol Parameter VDS ID IDM VGS IAS EAS PD TJ, TSTG Drain-Source Voltage Continuous Drain Current - TC = 25℃ - TC = 100℃ Drain Current - Pulsed (Note 1) Gate-Source voltage Avalanche Current, single pulse (Note 5) Avalanche Energy, single pulse, L=1mH (Note 5) Power Diss.
