SR150, SR120 Datasheet - Suntan

SR150 SCHOTTKY BARRIER RECTIFIER

Suntan® Su® SR120 THRU SR1200 SCHOTTKY BARRIER RECTIFIER REVERSE VOLTAGE 20 to 200 Volts FORWARD CURRENT 1.0 Ampere FEATU RE S Low forward voltage drop Low leakage current High forward surge capability High temperature soldering guaranteed: 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension Mechanical Data Case: Mold plastic Epoxy: UL94V-0 rate flame retardant Polarity: Indicated by cathode band Lead: Plated axial lead, solderable per MIL-S.

SR120-Suntan.pdf

This datasheet PDF includes multiple part numbers: SR150, SR120. Please refer to the document for exact specifications by model.

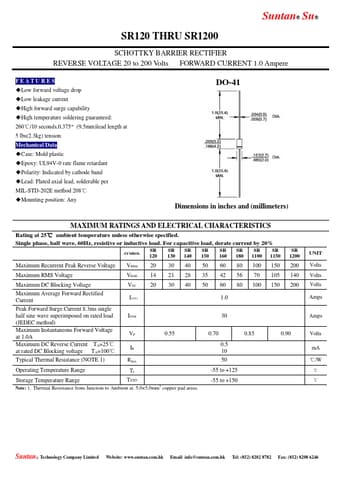

SR150 Datasheet Preview Page 2

Datasheet Details

Part number:

SR150, SR120

Manufacturer:

Suntan

File Size:

167.98 KB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SR150, SR120.
Please refer to the document for exact specifications by model.
