Datasheet Details
Part number:
DB156S, DB151S
Manufacturer:
Suntan
File Size:
215.53 KB
Description:
Single-phase glass passivated silicon surface mount bridge rectifier.
Note:
This datasheet PDF includes multiple part numbers: DB156S, DB151S.
Please refer to the document for exact specifications by model.

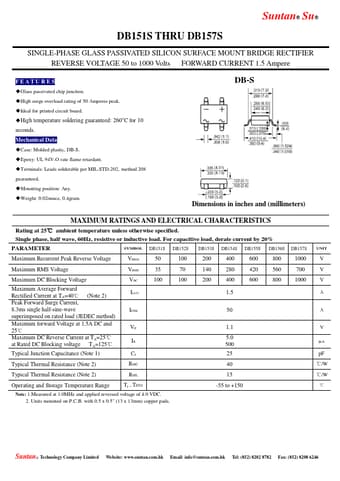

DB156S, DB151S, SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER
Suntan® Su® DB151S THRU DB157S SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.5 Ampere FEATU RE S Glass passivated chip junction.
High surge overload rating of 50 Amperes peak.
Ideal for printed circuit board.
High temperature soldering guaranteed: 260°C for 10 seconds.
Mechanical Data Case: Molded plastic, DB-S.
Epoxy: UL 94V-O rate flame retardant.
Terminals: Leads solderable per MIL-
