KSD301A - Thermostat

Download the KSD301A datasheet PDF (KSD301 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for thermostat.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KSD301_Sunshine.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KSD301A
Manufacturer Sunshine
File Size 1.20 MB
Description Thermostat
Datasheet download datasheet KSD301A Datasheet

📁 Similar Datasheet

  • KSD301 - BIMETAL THERMOSTAT (CALCO)
  • KSD301 - Thermal Fuse (ETC)
  • KSD301 - thermostat (henghao)
  • KSD301 - DISC BIMETAL THERMOSTAT (KERCO)
  • KSD301-G - BIMETAL THERMOSTAT (CALCO)
  • KSD301-G - DISC BIMETAL THERMOSTAT (KERCO)
  • KSD301-M - WATERTIGHT/WATERPROOF THERMOSTAT (CALCO)
  • KSD301-R - BIMETAL THERMOSTAT (CALCO)
  • KSD301-R - DISC BIMETAL THERMOSTAT (KERCO)
  • KSD301-U-G - BIMETAL THERMOSTAT (CALCO)
Other Datasheets by Sunshine

Full PDF Text Transcription

Click to expand full text

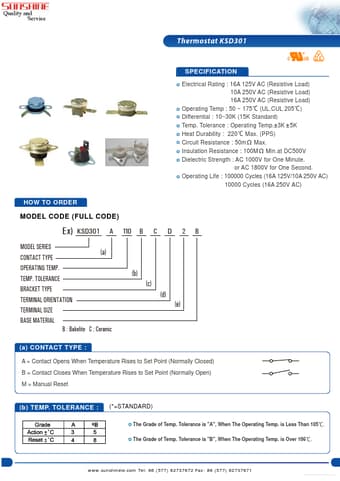

Thermostat KSD301 SPECIFICATION Electrical Rating : 16A 125V AC (Resistive Load) 10A 250V AC (Resistive Load) 16A 250V AC (Resistive Load) Operating Temp : 50 ~ 175 (UL.CUL 205 ) Differential : 10~30K (15K Standard) Temp. Tolerance : Operating Temp. 3K 5K Heat Durability : 220 Max. (PPS) Circuit Resistance : 50m Max. Insulation Resistance : 100M Min.at DC500V Dielectric Strength : AC 1000V for One Minute. or AC 1800V for One Second. Operating Life : 100000 Cycles (16A 125V/10A 250V AC) 10000 Cycles (16A 250V AC) HOW TO ORDER MODEL CODE (FULL CODE) Ex) KSD301 A 1 10 B C D 2 B MODEL SERIES (a) CONTACT TYPE OPERATING TEMP. TEMP.
