SGH80T60SMD - 600V 80A FieldStop Trench IGBT

The SGH80T60SMD by Sunnychip is a 600V 80A FieldStop Trench IGBT. Below is the official datasheet preview.

📥 Download Datasheet

SGH80T60SMD 600V 80A FieldStop Trench IGBT by Sunnychip - Datasheet Preview — Official preview page of the SGH80T60SMD 600V 80A FieldStop Trench IGBT datasheet (Sunnychip).

Datasheet Details

Part number	SGH80T60SMD
Manufacturer	Sunnychip
File Size	2.51 MB
Description	600V 80A FieldStop Trench IGBT
Datasheet	SGH80T60SMD-Sunnychip.pdf

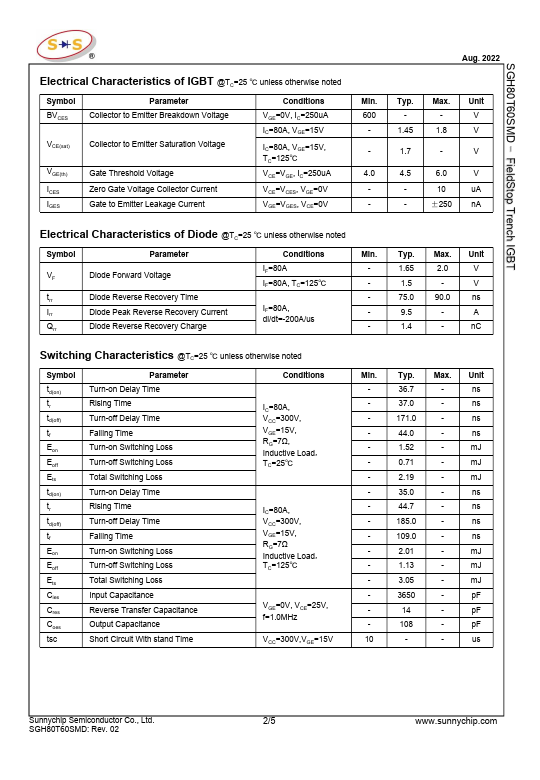

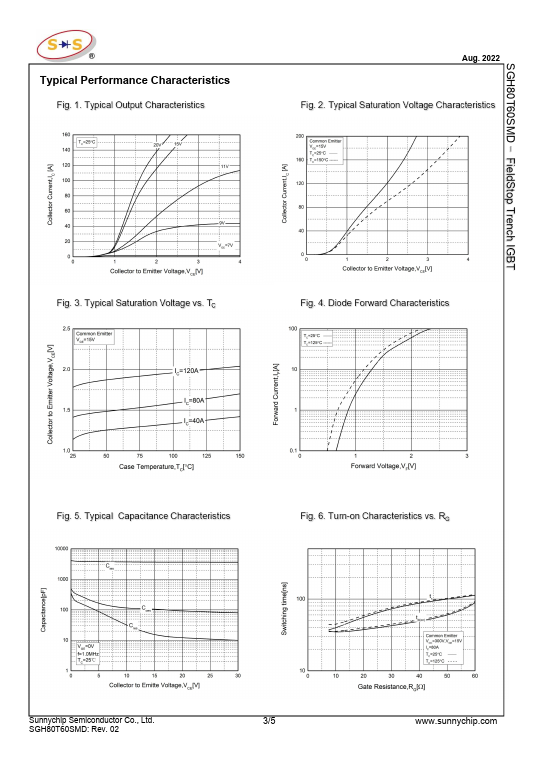

Additional preview pages of the SGH80T60SMD datasheet.

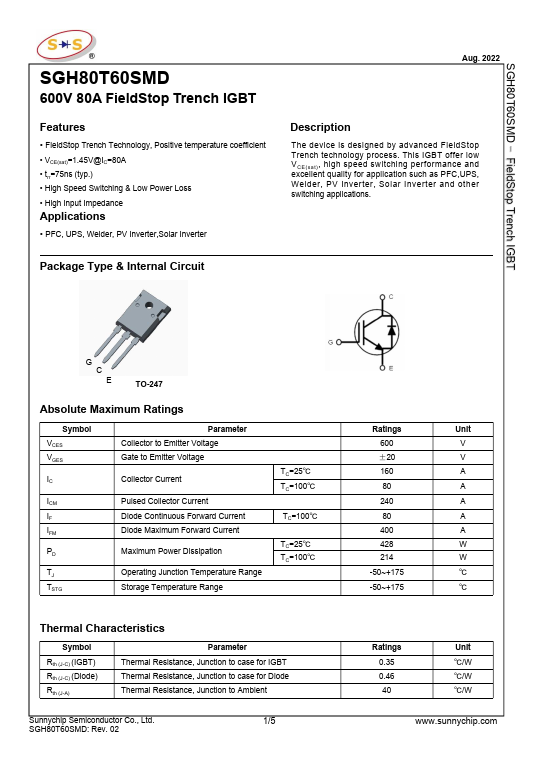

SGH80T60SMD Product details

Description

The device is designed by advanced FieldStop Trench technology process.

Features

FieldStop Trench Technology, Positive temperature coefficient.
VCE(sat)=1.45V@IC=80A.
trr=75ns (typ. ).
High Speed Switching & Low Power Loss.
High Input Impedance.
