SA2M, SA2A - SURFACE MOUNT SILICON RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	SA2M, SA2A
Manufacturer	Sunmate
File Size	139.47 KB
Description	SURFACE MOUNT SILICON RECTIFIER DIODES
Datasheet	SA2A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SA2M, SA2A. Please refer to the document for exact specifications by model.

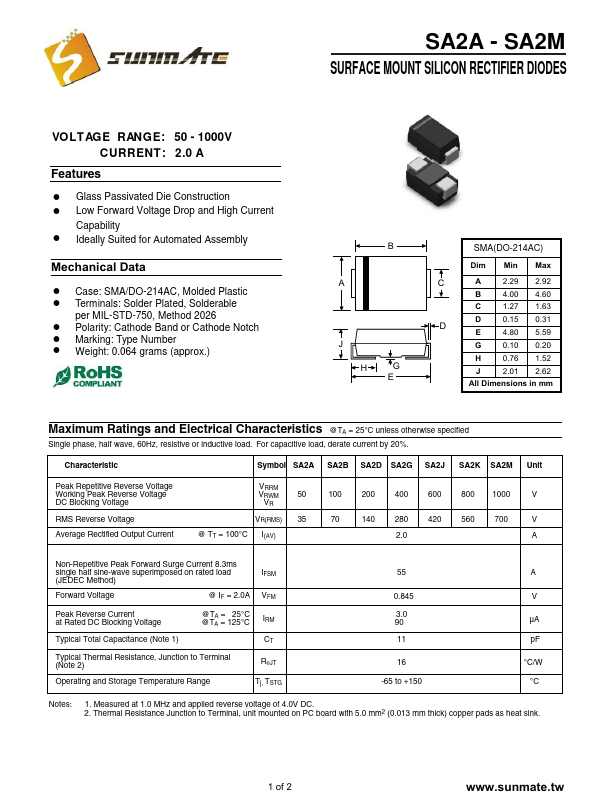

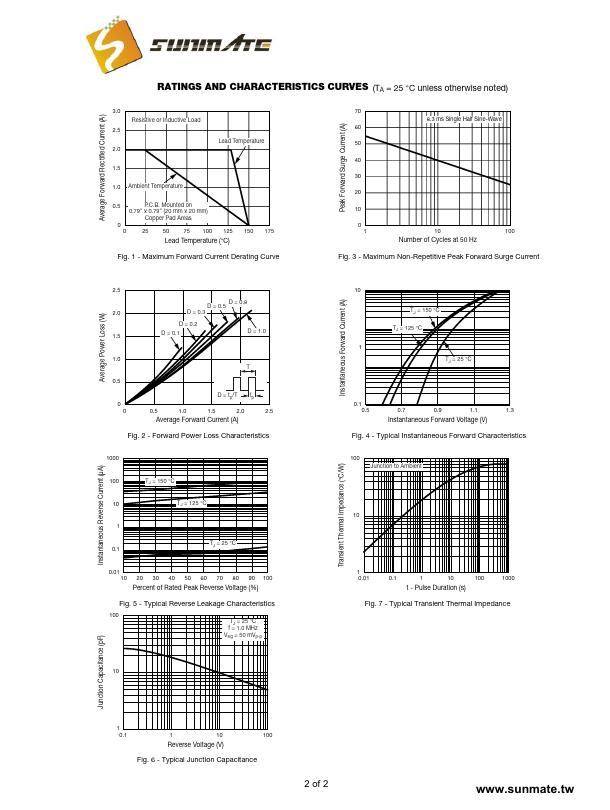

! Glass Passivated Die Construction ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automated Assembly Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J.
