S5BBF - SURFACE MOUNT RECTIFIER DIODES

Sunmate

S5BBF Description

S5ABF - S5MBF SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0 A .

S5BBF Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief B ! Plastic Case Material has UL Flammability Classification Rating 94V-O C E

📥 Download Datasheet

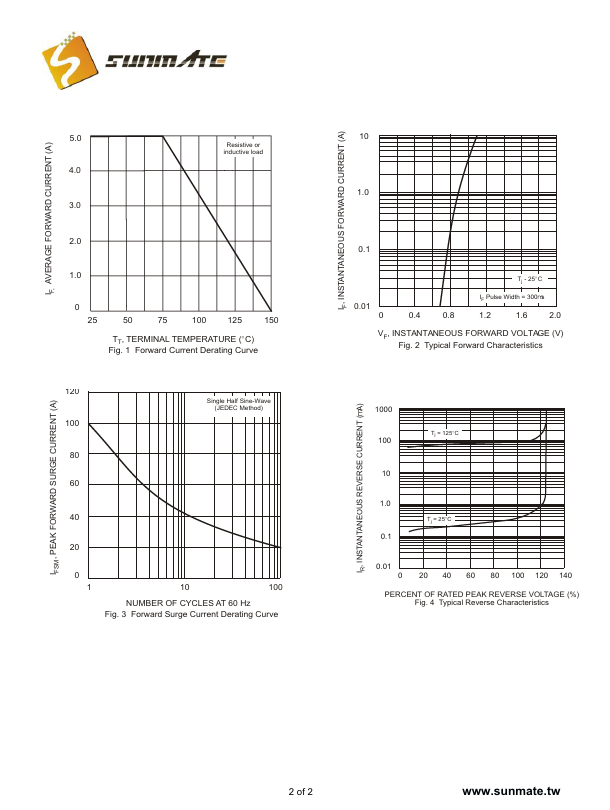

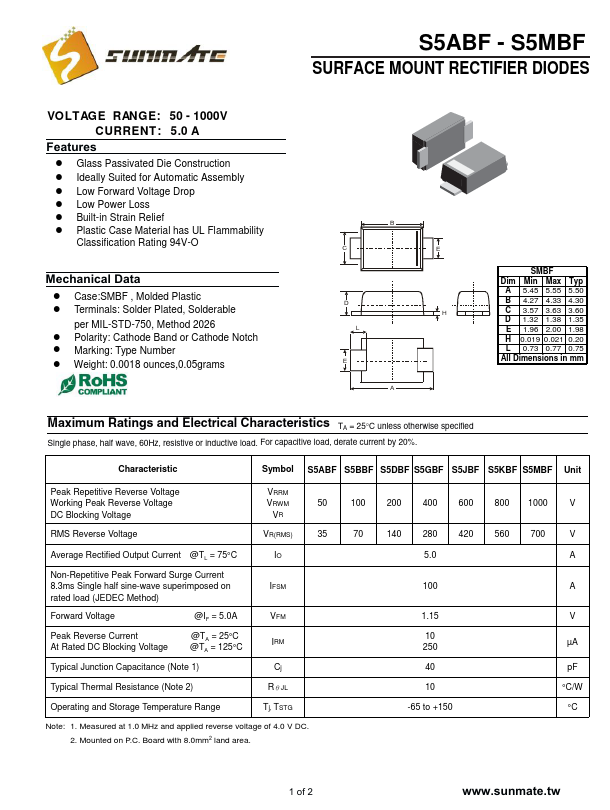

S5BBF Datasheet Preview — Preview of S5BBF PDF

Datasheet Details

Part number: S5BBF
Manufacturer: Sunmate
File Size: 102.21 KB
Datasheet: S5BBF-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
