S3BBF SURFACE MOUNT RECTIFIER DIODES

Sunmate

S3BBF Description

S3ABF - S3MBF SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A .

S3BBF Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss B ! Built-in Strain Relief ! Plastic Case Material has UL Flammability C E Classification Rating 94V-O Mechanical Data SMBF Dim Min Max Typ

📥 Download Datasheet

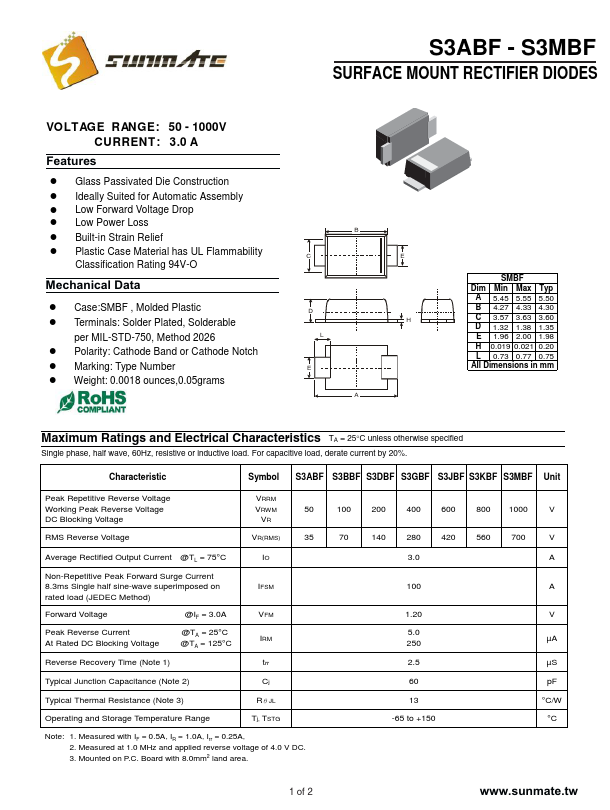

S3BBF Datasheet Preview — Preview of S3BBF PDF

Datasheet Details

Part number: S3BBF
Manufacturer: Sunmate
File Size: 91.51 KB
Datasheet: S3BBF-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
