S2BF - SURFACE MOUNT SILICON RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	S2BF
Manufacturer	Sunmate
File Size	1.17 MB
Description	SURFACE MOUNT SILICON RECTIFIER DIODES
Datasheet	S2BF-Sunmate.pdf

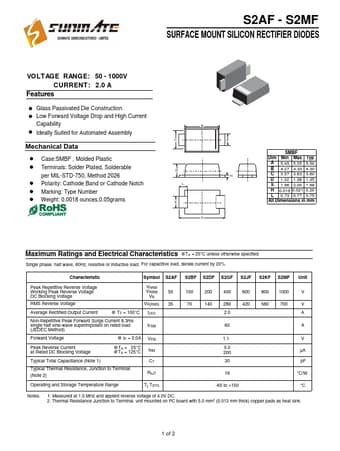

! Glass Passivated Die Construction ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automated Assembly Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.0018 ounces,0.05grams B CE D L E A H SMBF Dim Min Max Typ A 5.45 5.55 5.50 B 4.27 4.33 4.30 C 3.57 3.63 3.60 D 1.32 1.38 1.35 E 1.96 2.00 1.98 H 0.019 0.021 0.20 L 0.73 0.77.
