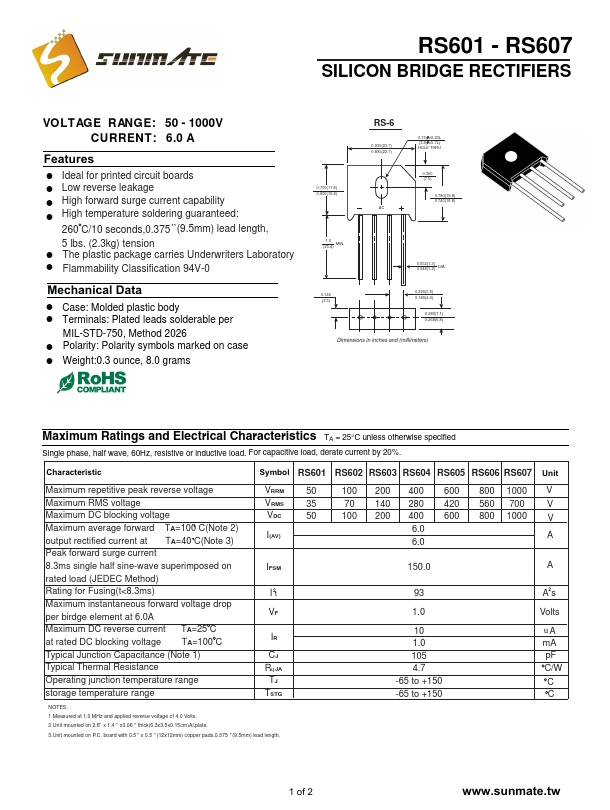

RS601 - SILICON BRIDGE RECTIFIERS

Sunmate

Datasheet Details

! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ”(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 Mechanical Data ! Case: Molded plastic body ! Terminals: Plated leads solderable per MIL-STD-750, Method 2026 ! Polarity: Polarity symbols marked on case ! Weight:0.3 ounce, 8.0 grams 0.700(17.8) 0.600(1.
