RS1002, RS1001 SINGLE-PHASE BRIDGE RECTIFIER

Sunmate

Description

RS1001-RS1007 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 10 A .

📥 Download Datasheet

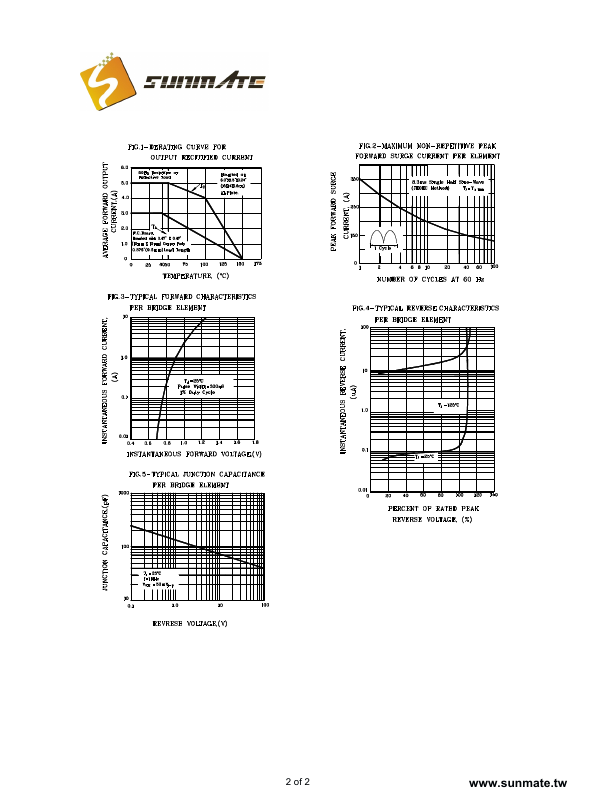

RS1002 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS1002, RS1001. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS1002, RS1001
Manufacturer: Sunmate
File Size: 380.62 KB
Datasheet: RS1001-Sunmate.pdf
Description: SINGLE-PHASE BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: RS1002, RS1001.
Please refer to the document for exact specifications by model.

Features

* l Low cost l High forward surge current capability l Ideal for printed circuit board 0 Mechanical Data l Case: Transfer molded plastic l Terminal: Lead solderable per MIL-STD-202E method 208C l Polarity: Polarity symbols marked on case l Mounting: Thru hole for #6 screw, 5 in. -lbs terque max l Weigh
