RH4000A - High voltage diode

Name: RH4000A
SKU: RH4000A-1590005

Sunmate

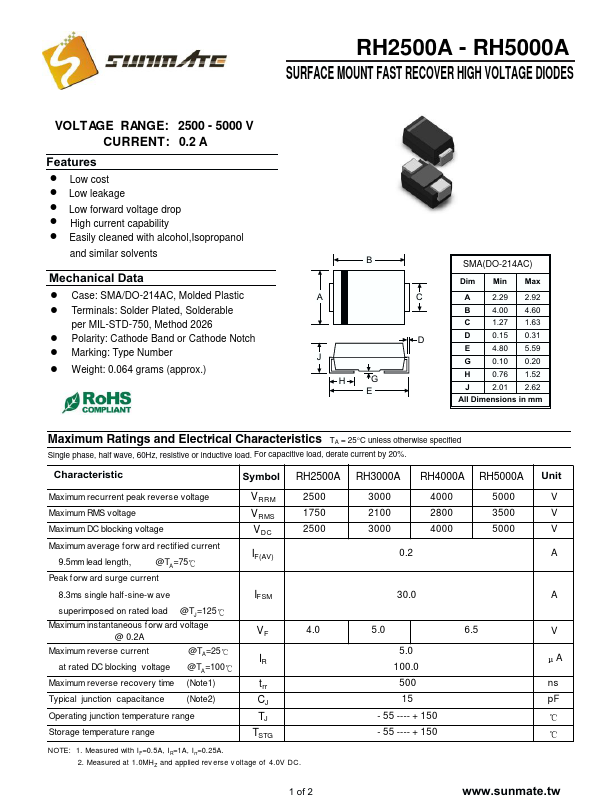

The RH4000A by Sunmate is a High voltage diode. Below is the official datasheet preview.

Datasheet Details

Part number	RH4000A
Manufacturer	Sunmate
File Size	116.40 KB
Description	High voltage diode
Datasheet	RH4000A-Sunmate.pdf

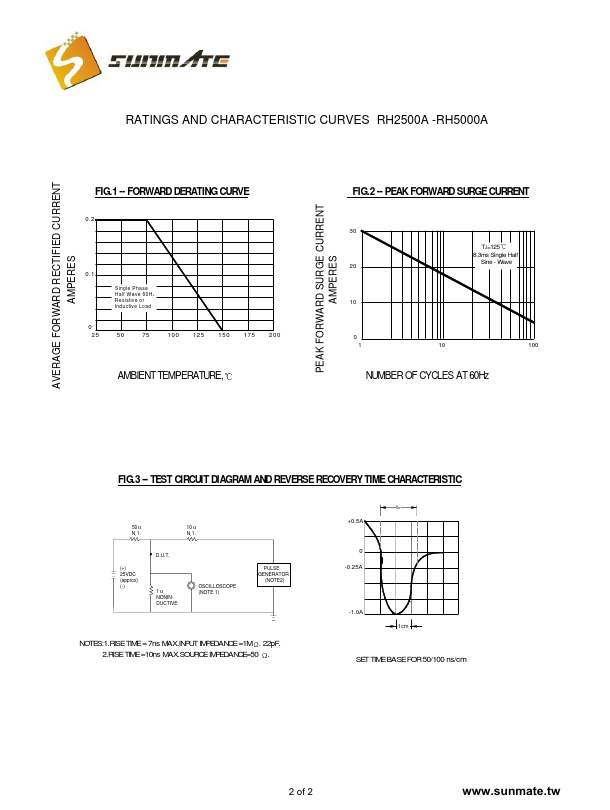

Additional preview pages of the RH4000A datasheet.

! Low cost ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol and similar solvents Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.
