RH1500A, RH1200A - High voltage diode

Name: RH1500A
SKU: RH1500A-1590000

Sunmate

The RH1500A by Sunmate is a High voltage diode. Below is the official datasheet preview.

Datasheet Details

Part number	RH1500A, RH1200A
Manufacturer	Sunmate
File Size	204.48 KB
Description	High voltage diode
Datasheet	RH1200A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RH1500A, RH1200A. Please refer to the document for exact specifications by model.

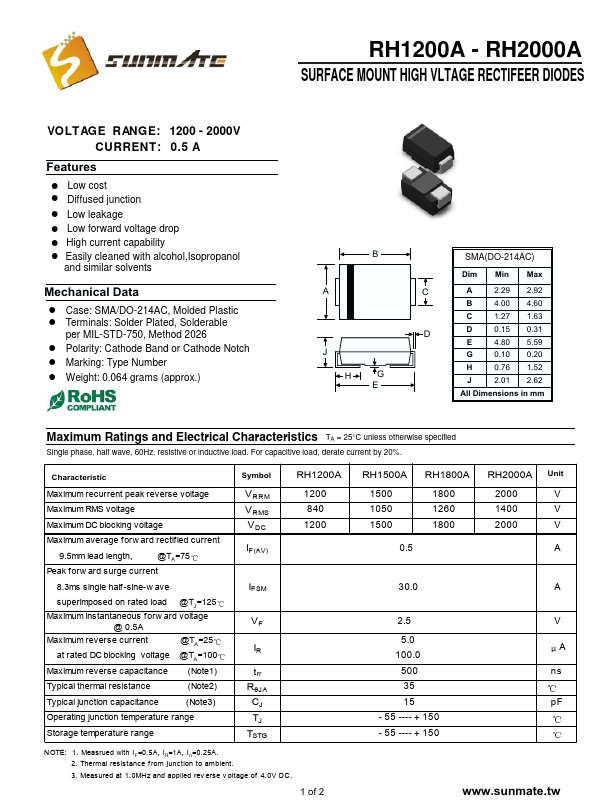

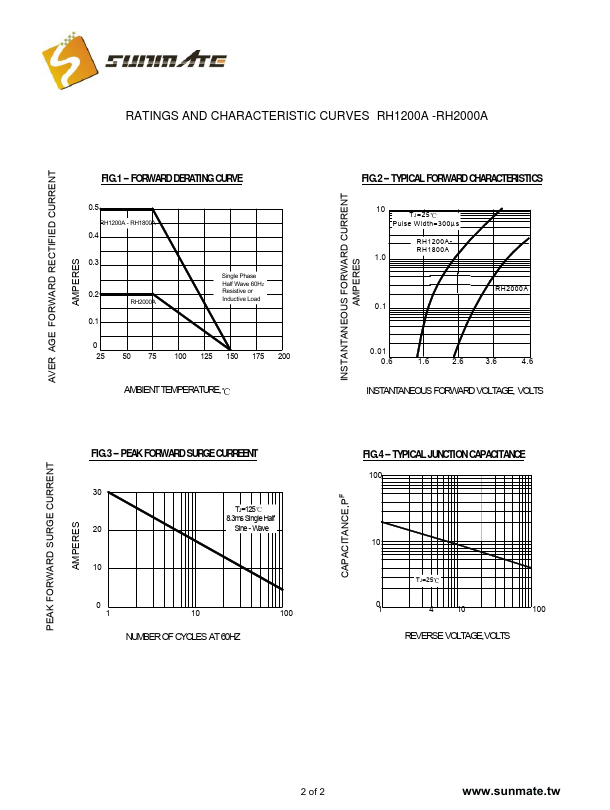

Additional preview pages of the RH1500A datasheet.

! Low cost ! Diffused junction ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol and similar solvents Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59.
