RGF2D, RGF2A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Name: RGF2D
SKU: RGF2D-1592226

Sunmate

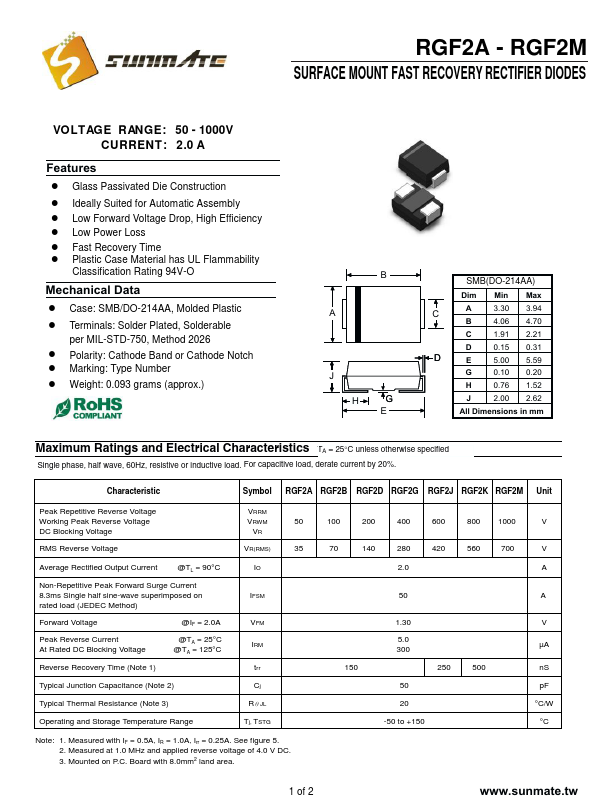

The RGF2D by Sunmate is a SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	RGF2D, RGF2A
Manufacturer	Sunmate
File Size	243.43 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	RGF2A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RGF2D, RGF2A. Please refer to the document for exact specifications by model.

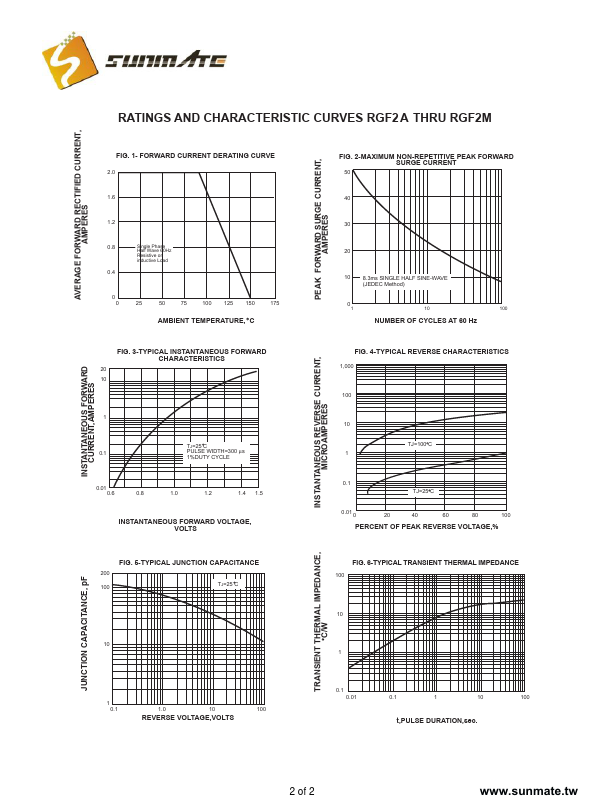

Additional preview pages of the RGF2D datasheet.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability C lassific a tio n R ating 94V-O B SMB(DO-214AA) Mechanical Data Dim Min Max ! Case: SMB/DO-214AA, Molded Plastic A ! Terminals: Solder Plated.
