RFC2K - High voltage diode

Name: RFC2K
SKU: RFC2K-1590029

Sunmate

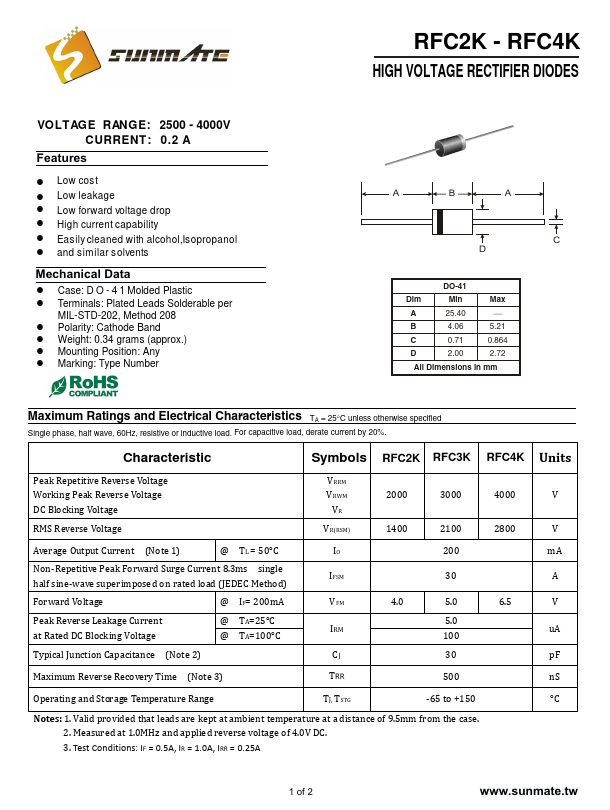

The RFC2K by Sunmate is a High voltage diode. Below is the official datasheet preview.

Datasheet Details

Part number	RFC2K
Manufacturer	Sunmate
File Size	939.55 KB
Description	High voltage diode
Datasheet	RFC2K-Sunmate.pdf

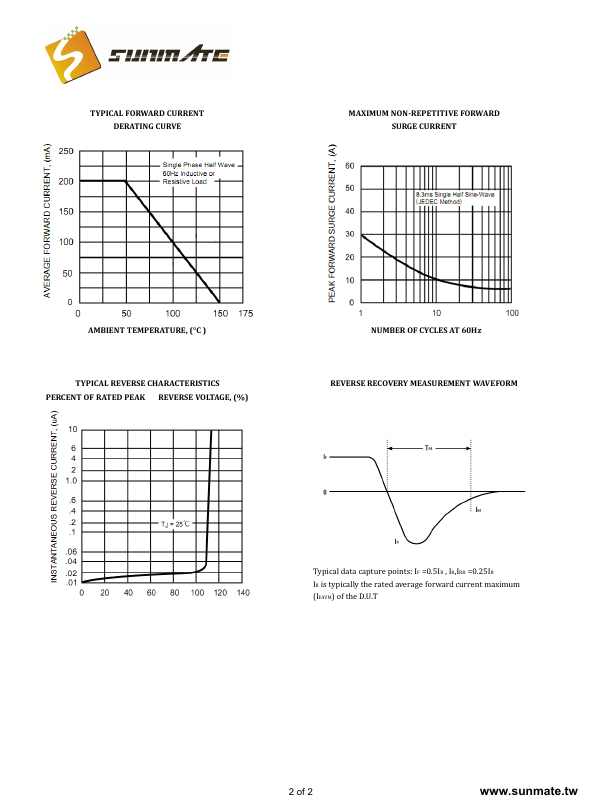

Additional preview pages of the RFC2K datasheet.

! Low cost ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol ! and similar solvents Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and E.
