RE4000A - High voltage diode

Name: RE4000A
SKU: RE4000A-1590012

Sunmate

The RE4000A by Sunmate is a High voltage diode. Below is the official datasheet preview.

Datasheet Details

Part number	RE4000A
Manufacturer	Sunmate
File Size	111.51 KB
Description	High voltage diode
Datasheet	RE4000A-Sunmate.pdf

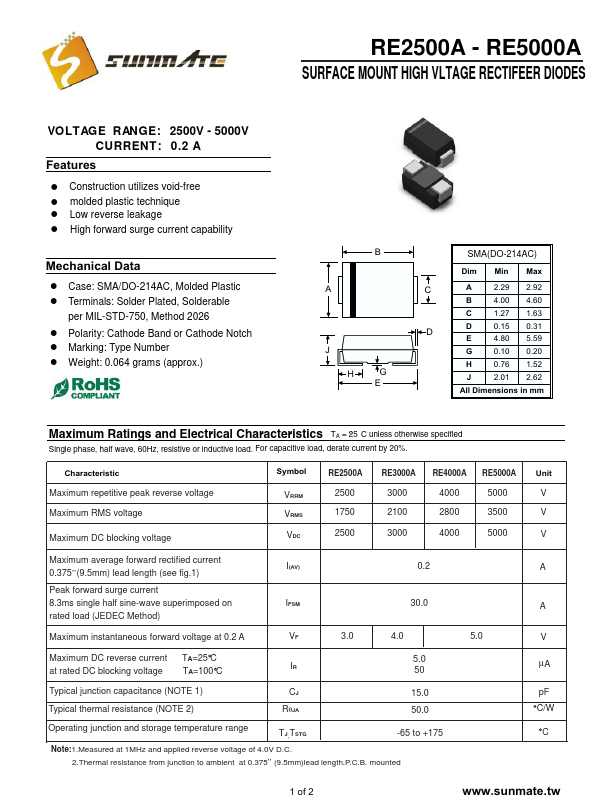

Additional preview pages of the RE4000A datasheet.

! Construction utilizes void-free ! molded plastic technique ! Low reverse leakage ! High forward surge current capability Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.
