RE1600A - High voltage diode

Name: RE1600A
SKU: RE1600A-1590007

Sunmate

The RE1600A by Sunmate is a High voltage diode. Below is the official datasheet preview.

Datasheet Details

Part number	RE1600A
Manufacturer	Sunmate
File Size	106.01 KB
Description	High voltage diode
Datasheet	RE1600A-Sunmate.pdf

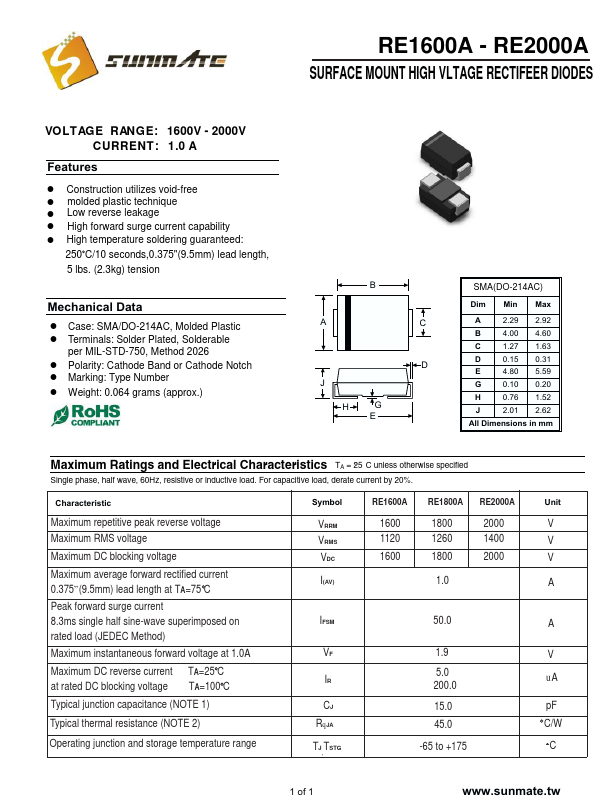

Additional preview pages of the RE1600A datasheet.

! Construction utilizes void-free ! molded plastic technique ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 250 C/10 seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A C D J H G E SMA(DO-214AC) Dim Min Max.
