R5000F - High voltage diode

Sunmate

📥 Download Datasheet

R5000F Datasheet Preview — Preview of R5000F PDF

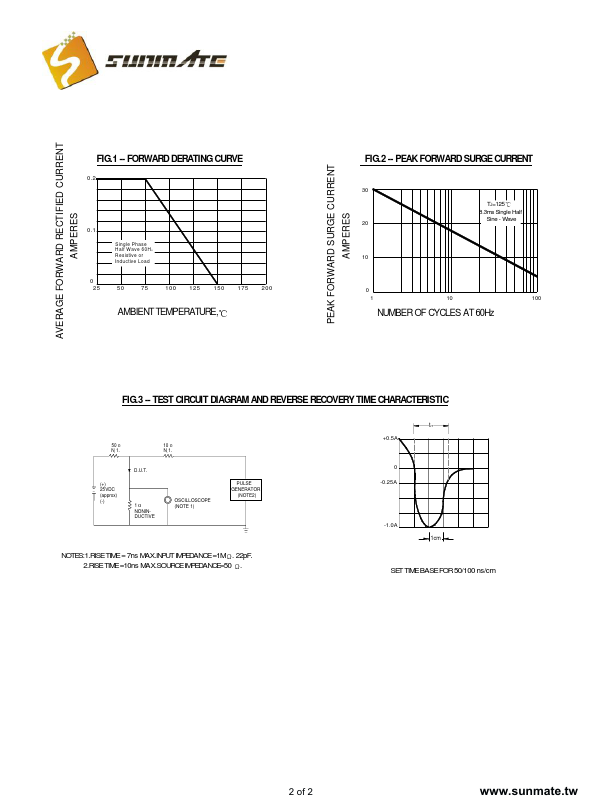

datasheet Preview Page 2

Datasheet Details

Part number	R5000F
Manufacturer	Sunmate
File Size	114.09 KB
Description	High voltage diode
Datasheet	R5000F-Sunmate.pdf

R5000F Product details

Features

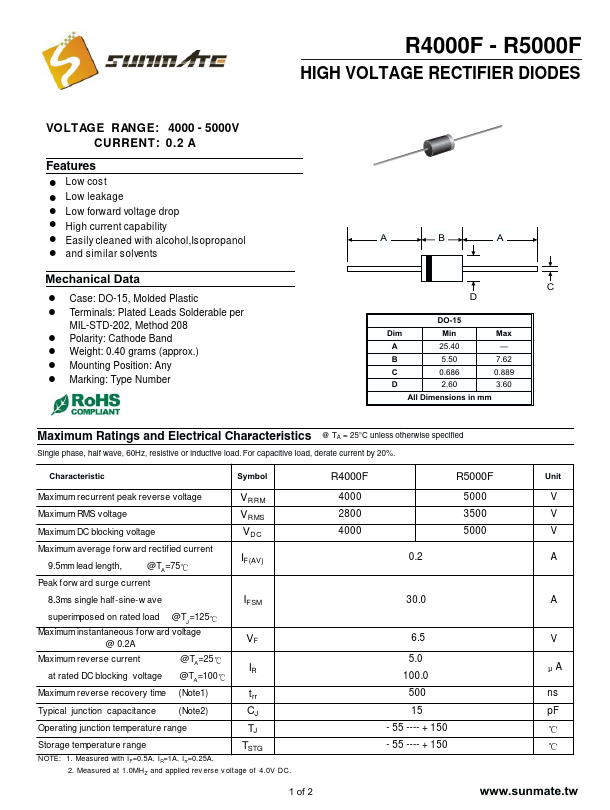

! Low cost ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol ! and similar solvents Mechanical Data ! Case: DO-15, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-15 Dim Min Max A 25.40.
B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm Maximum Ratings.
