Datasheet Specifications
- Part number
- R3000
- Manufacturer
- Sunmate
- File Size
- 267.12 KB
- Datasheet
- R3000-Sunmate.pdf
- Description
- High voltage diode
Description

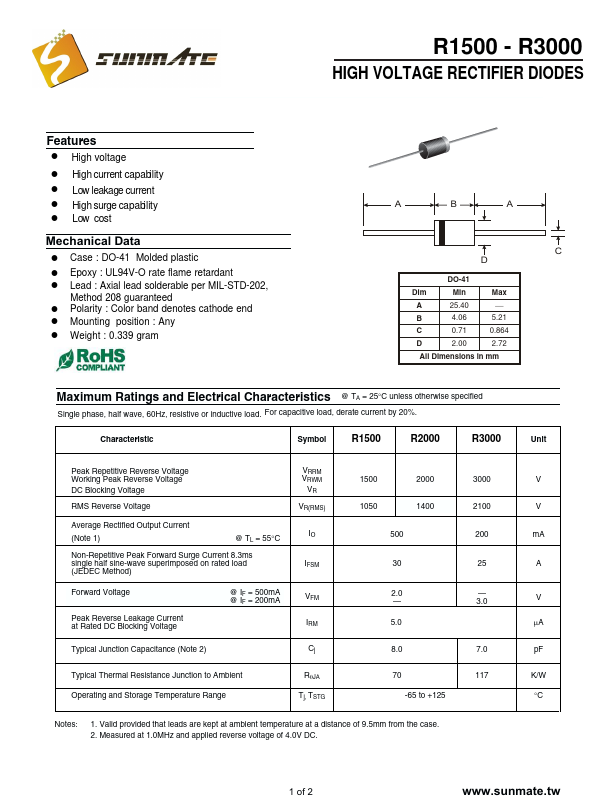

R1500 - R3000 HIGH VOLTAGE RECTIFIER DIODES .
Features
* ! High voltage ! High current capability ! Low leakage current ! High surge capability ! Low cost Mechanical Data ! Case : DO-41 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! MR3000 Distributors
