R2500F - High voltage diode

Sunmate

📥 Download Datasheet

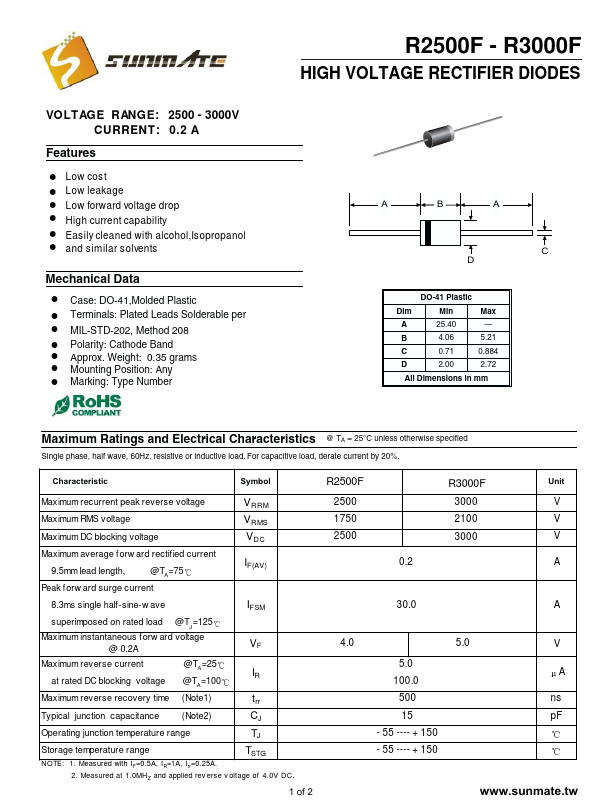

R2500F Datasheet Preview — Preview of R2500F PDF

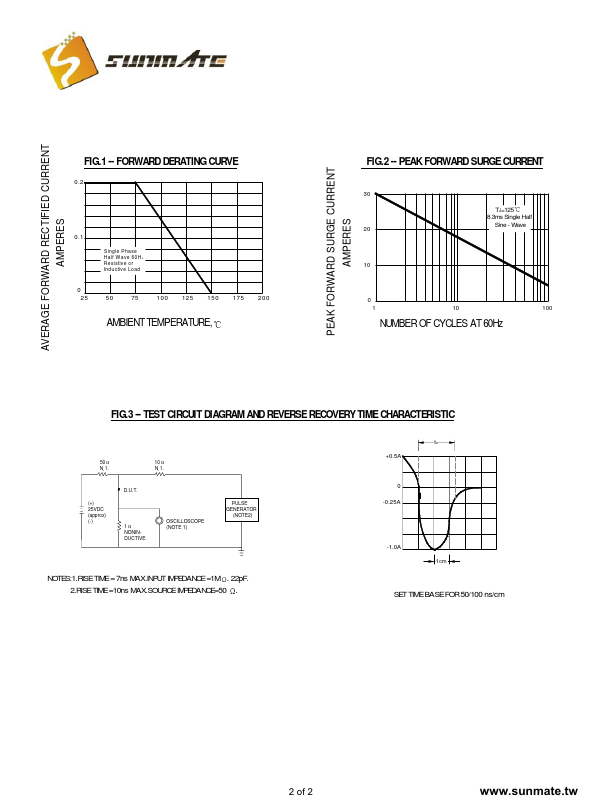

datasheet Preview Page 2

Datasheet Details

Part number	R2500F
Manufacturer	Sunmate
File Size	98.27 KB
Description	High voltage diode
Datasheet	R2500F-Sunmate.pdf

R2500F Product details

Features

! Low cost ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol ! and similar solvents Mechanical Data ! Case: DO-41,Molded Plastic ! Terminals: Plated Leads Solderable per ! MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Approx. Weight: 0.35 grams ! Mounting Position: Any ! Marking: Type Number R2500F - R3000F HIGH.
