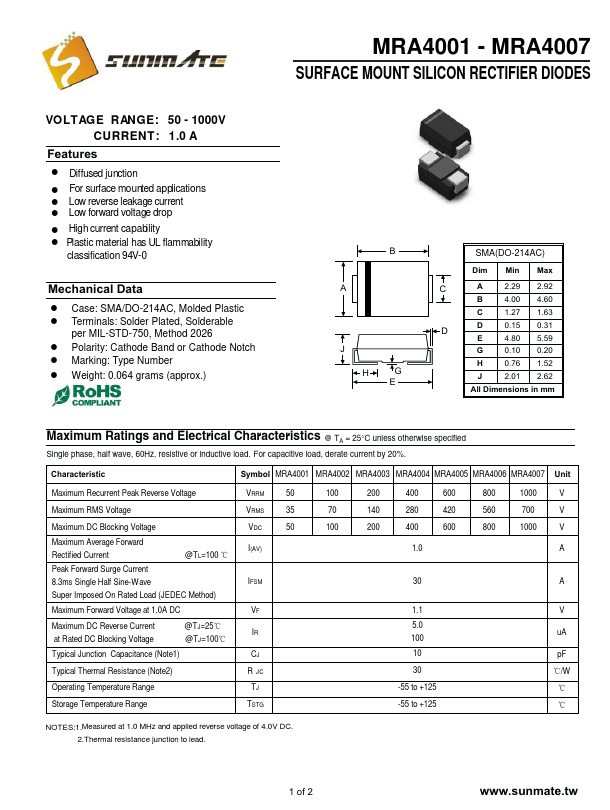

MRA4001 - MRA4007
SURFACE MOUNT SILICON RECTIFIER DIODES
VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A
Features
! Diffused junction ! For surface mounted applications ! Low reverse leakage current ! Low forward voltage drop ! High current capability ! Plastic material has UL flammability
classification 94V-0
Mechanical Data
! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx.)
B A
J
H
G
E
SMA(DO-214AC)
Dim Min Max
C
A
2.29 2.92
B
4.00 4.60
C
1.27 1.63
D
D
0.15 0.31
E
4.80 5.59
G
0.10 0.20
H
0.76 1.52
J
2.01 2.
