MMBD914 SURFACE MOUNT SWTCHING DIODE

Sunmate

Description

MMBD914 SURFACE MOUNT SWTCHING DIODE .

📥 Download Datasheet

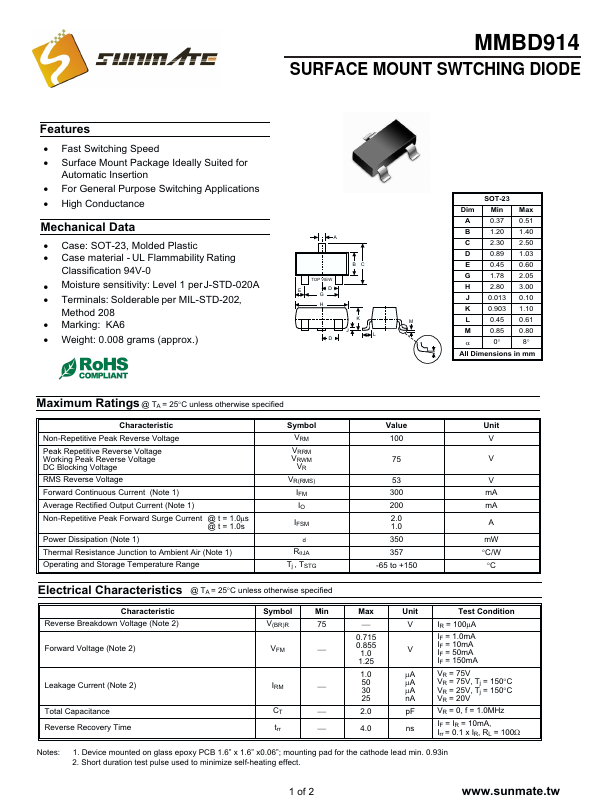

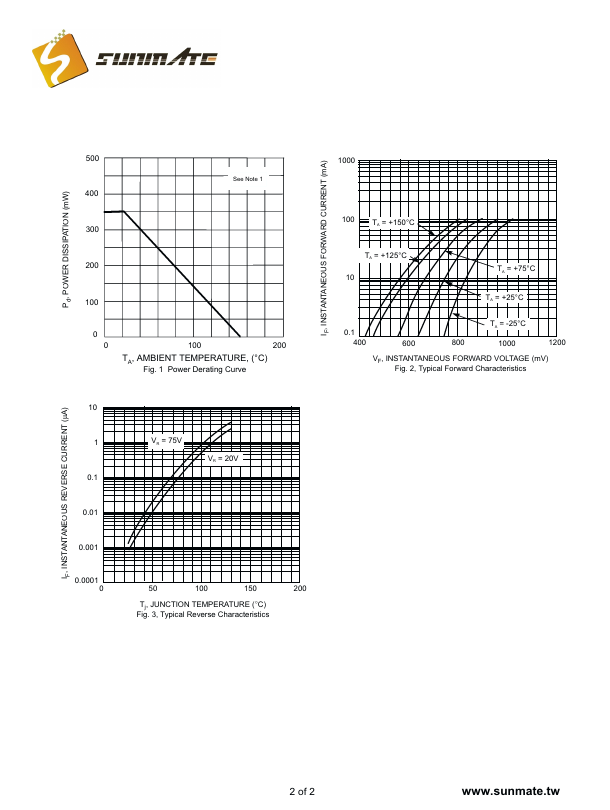

MMBD914 Datasheet Preview — Preview of MMBD914 PDF

Datasheet Specifications

Part number: MMBD914
Manufacturer: Sunmate
File Size: 374.85 KB
Datasheet: MMBD914-Sunmate.pdf
Description: SURFACE MOUNT SWTCHING DIODE

Features

* Fast Switching Speed
* Surface Mount Package Ideally Suited for Automatic Insertion

Applications

* High Conductance Mechanical Data
* Case: SOT-23, Molded Plastic
* Case material - UL Flammability Rating Classification 94V-0
* Moisture sensitivity: Level 1 per J-STD-020A
* Terminals: Solderable per MIL-STD-202, Method 208
* Marking: KA6
* Weight: 0.008 grams (approx.
