LL914 - SILICON EPITAXIAL PLANAR DIODES

Name: LL914
SKU: LL914-1590420

Sunmate

The LL914 by Sunmate is a SILICON EPITAXIAL PLANAR DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	LL914
Manufacturer	Sunmate
File Size	301.82 KB
Description	SILICON EPITAXIAL PLANAR DIODES
Datasheet	LL914-Sunmate.pdf

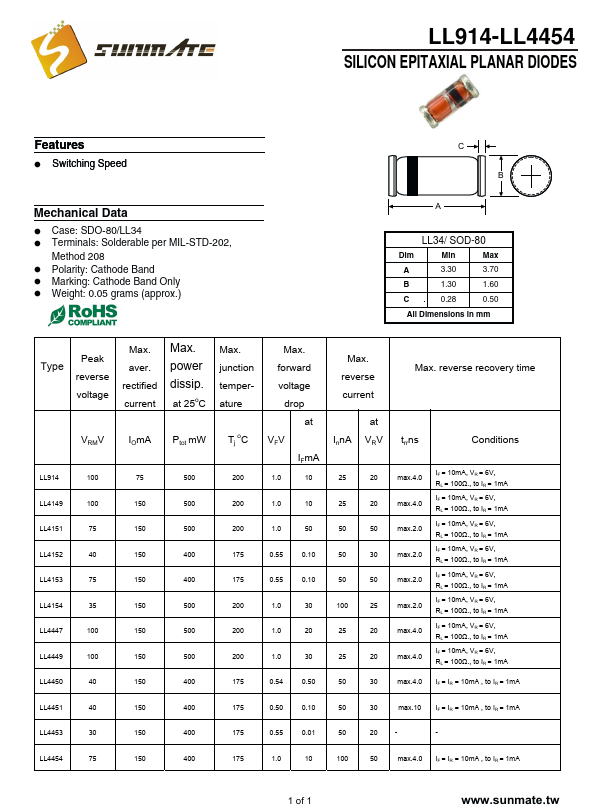

Additional preview pages of the LL914 datasheet.

Switching Speed C B Mechanical Data.
Case: SDO-80/LL34.
Terminals: Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Marking: Cathode Band Only.
Weight: 0.05 grams (approx. ) A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Type Peak reverse voltage Max. aver. rectified current Max. power dissip. at 25oC VRMV IOmA Ptot mW LL914 100 75 500 LL4149 100 150 500 LL4151 75 150 500 LL4152.
