LL700 - SURFACE MOUNT FAST SWITCHING DIODE

Name: LL700
SKU: LL700-1590467

Sunmate

The LL700 by Sunmate is a SURFACE MOUNT FAST SWITCHING DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	LL700
Manufacturer	Sunmate
File Size	1.16 MB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	LL700-Sunmate.pdf

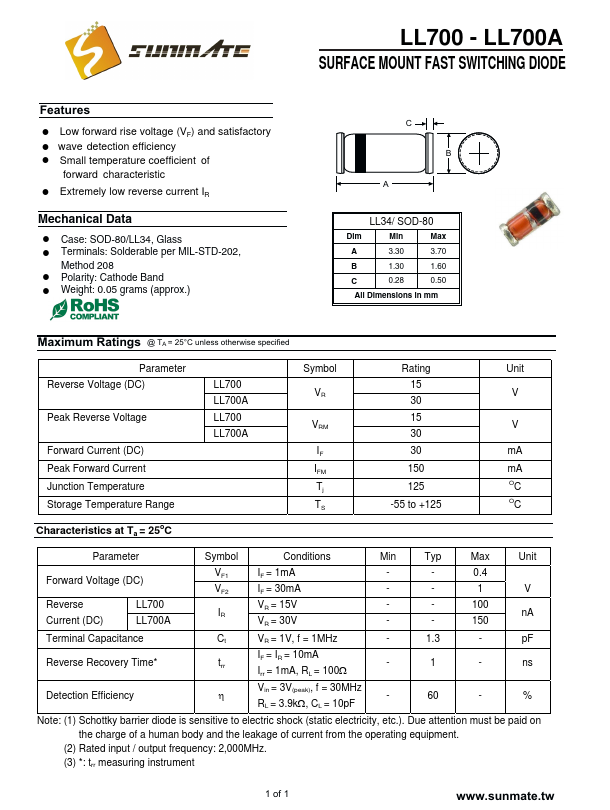

Additional preview pages of the LL700 datasheet.

! Low forward rise voltage (VF) and satisfactory ! wave detection efficiency ! Small temperature coefficient of forward characteristic ! Extremely low reverse current IR Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Parameter Symbol.
