LL60P, LL60 - SURFACE MOUNT SCHOTTKY BARRIER DIODES

Name: LL60P
SKU: LL60P-1590510

Sunmate

The LL60P by Sunmate is a SURFACE MOUNT SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	LL60P, LL60
Manufacturer	Sunmate
File Size	870.51 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODES
Datasheet	LL60-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: LL60P, LL60. Please refer to the document for exact specifications by model.

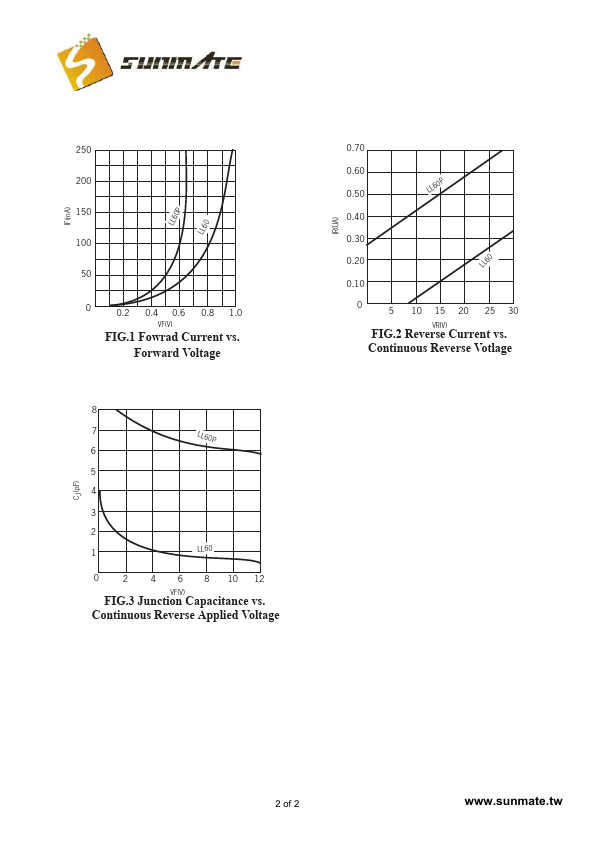

Additional preview pages of the LL60P datasheet.

D Silcon Epitaxial Planner Diode D Low Reverse Current and Low Forward Voltage D Low Current Rectifeication and High Speed Switching D High Relability Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Pepetitive Peak Reverse.
