LL60 - SURFACE MOUNT SCHOTTKY BARRIER DIODES

Name: LL60
SKU: LL60-1590509

Sunmate

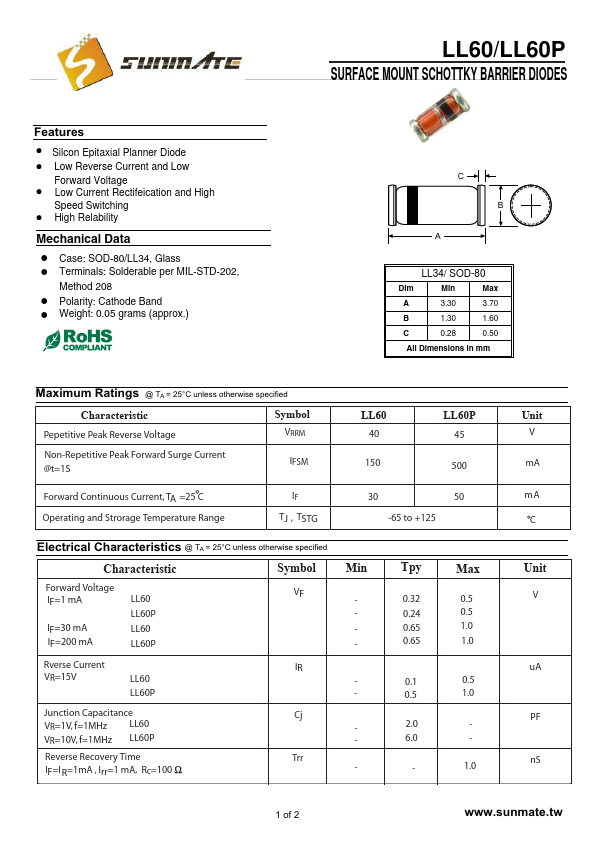

The LL60 by Sunmate is a SURFACE MOUNT SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	LL60
Manufacturer	Sunmate
File Size	870.51 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODES
Datasheet	LL60-Sunmate.pdf

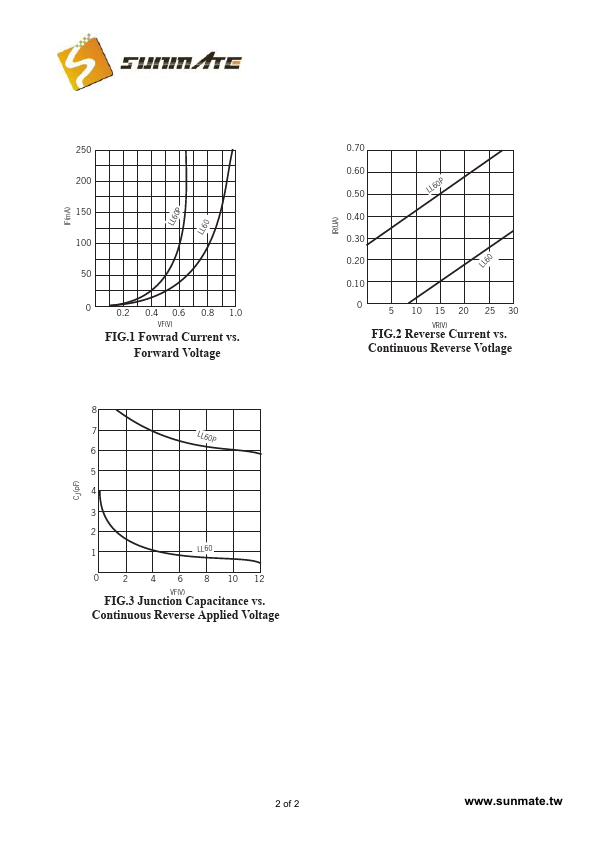

Additional preview pages of the LL60 datasheet.

D Silcon Epitaxial Planner Diode D Low Reverse Current and Low Forward Voltage D Low Current Rectifeication and High Speed Switching D High Relability Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Pepetitive Peak Reverse.
