LL5711 - SCHOTTKY BARRIER SWITCHING DIODES

Name: LL5711
SKU: LL5711-1590515

Sunmate

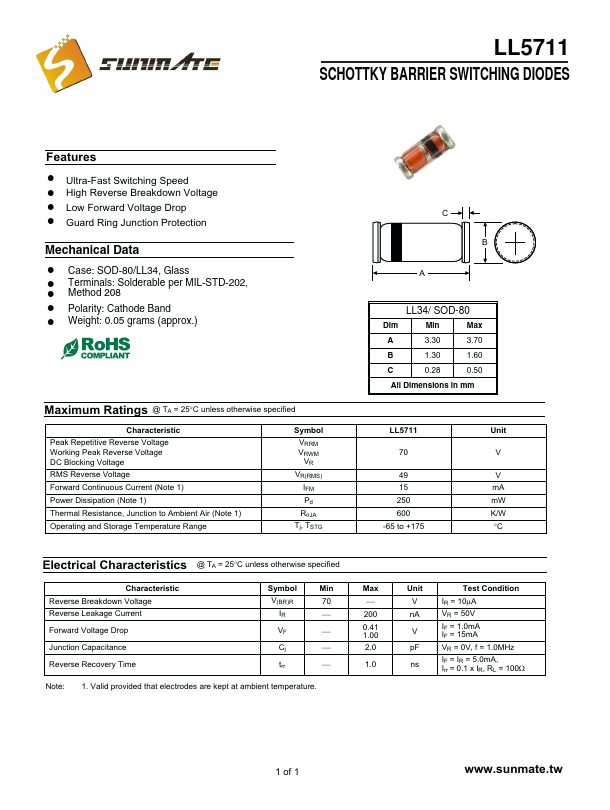

The LL5711 by Sunmate is a SCHOTTKY BARRIER SWITCHING DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	LL5711
Manufacturer	Sunmate
File Size	343.22 KB
Description	SCHOTTKY BARRIER SWITCHING DIODES
Datasheet	LL5711-Sunmate.pdf
Additional preview pages of the LL5711 datasheet.

! Ultra-Fast Switching Speed ! High Reverse Breakdown Voltage ! Low Forward Voltage Drop ! Guard Ring Junction Protection Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Power Dissipatio.
