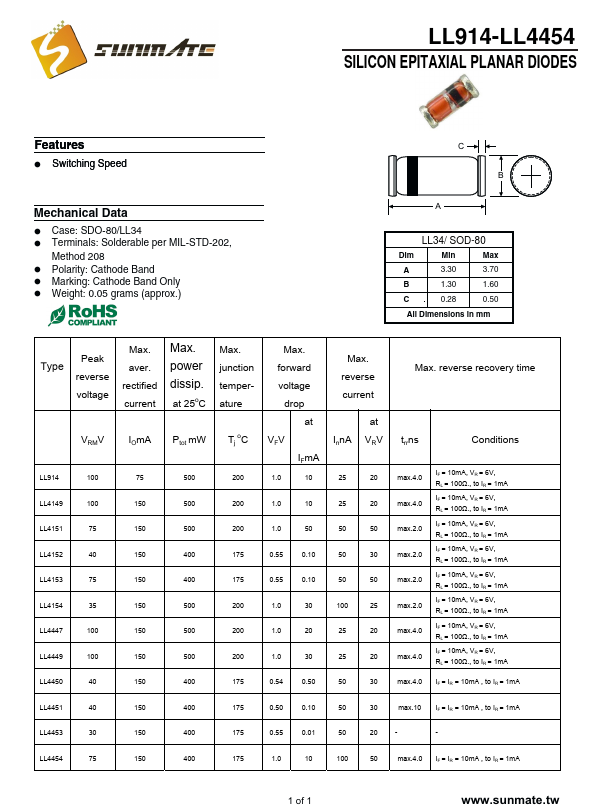

LL4149 - SILICON EPITAXIAL PLANAR DIODES

Sunmate

Datasheet Details

Part number	LL4149
Manufacturer	Sunmate
File Size	291.48 KB
Description	SILICON EPITAXIAL PLANAR DIODES
Datasheet	LL4149-Sunmate.pdf

Switching Speed C B Mechanical Data.
Case: SDO-80/LL34.
Terminals: Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Marking: Cathode Band Only.
Weight: 0.05 grams (approx. ) A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Type Peak reverse voltage Max. aver. rectified current Max. power dissip. at 25oC VRMV IOmA Ptot mW LL914 100 75 500 LL4149 100 150 500 LL4151 75 150 500 LL4152.
