KBP10 - SILICON BRIDGE RECTIFIERS

Product Overview

Sunmate

Part number	KBP10
Manufacturer	Sunmate
File Size	641.08 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBP10 Datasheet
Note	This datasheet PDF includes multiple part numbers: KBP10, KBP005. Please refer to the document for exact specifications by model.

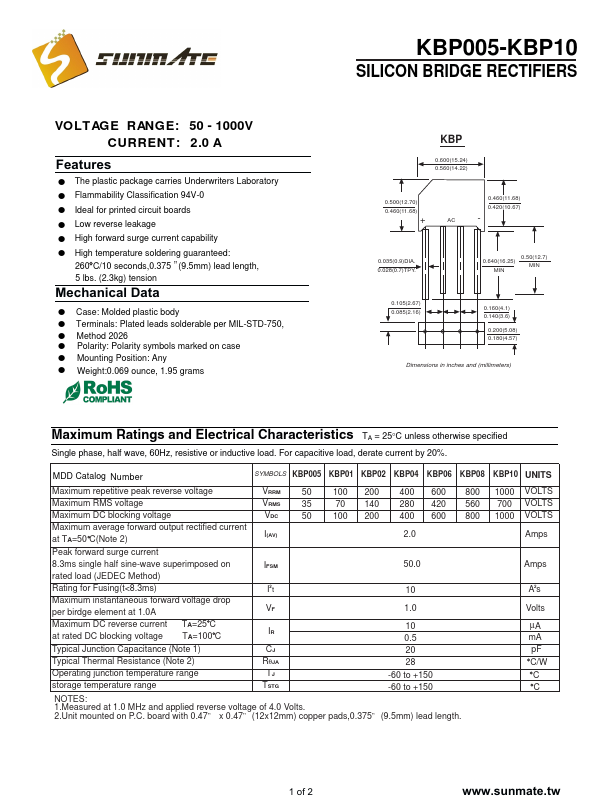

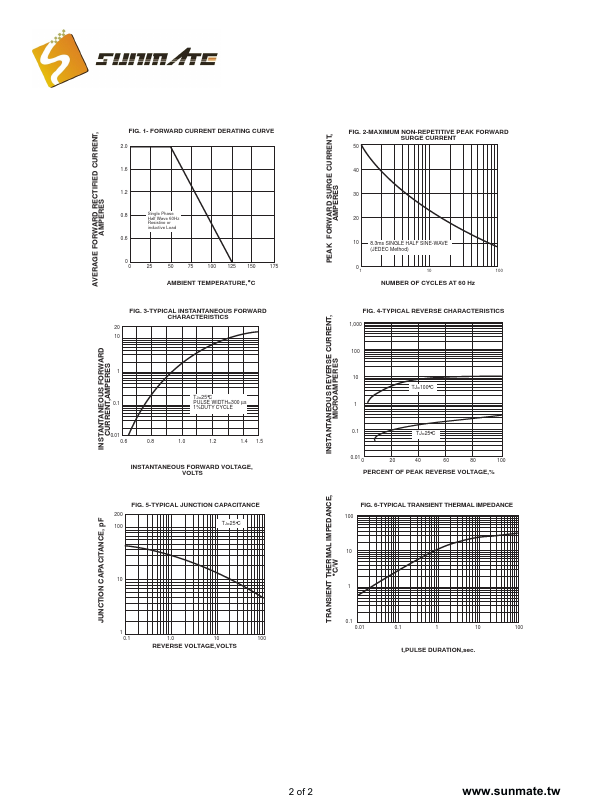

Additional preview pages of the KBP10 datasheet.

! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 ! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ” (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: Molded plastic body ! Terminals: Plated leads solderable per MIL-STD-750, ! Method 2026 ! Polarity: Polarity symbols marked on case ! Mounting Position: Any ! Weight:0.069 ounce,.
