KBJ2M - SILICON BRIDGE RECTIFIERS

Product Overview

Sunmate

Part number	KBJ2M
Manufacturer	Sunmate
File Size	559.98 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBJ2M Datasheet
Note	This datasheet PDF includes multiple part numbers: KBJ2M, KBJ2A. Please refer to the document for exact specifications by model.

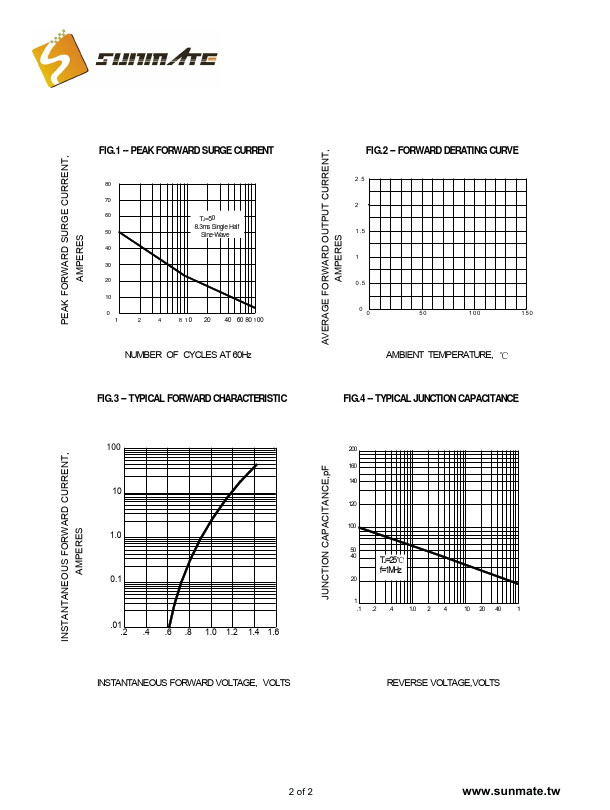

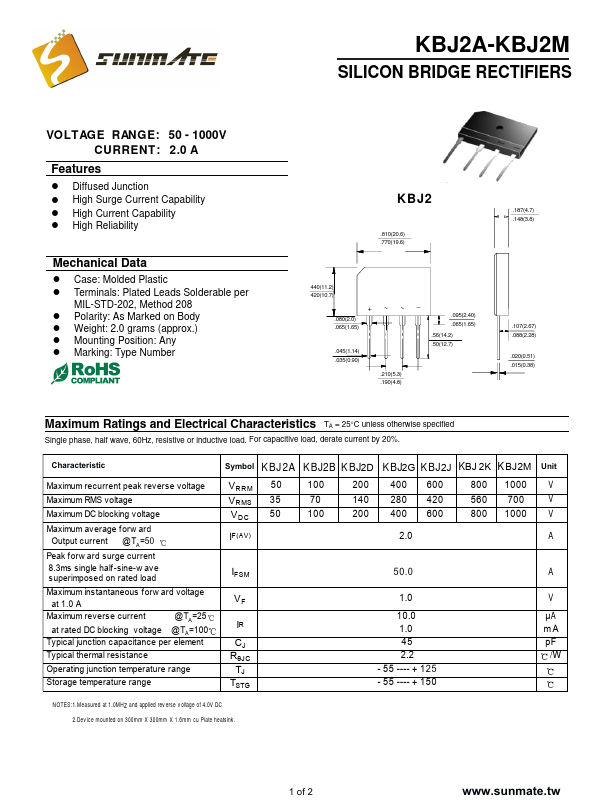

Additional preview pages of the KBJ2M datasheet.

! Diffused Junction ! High Surge Current Capability ! High Current Capability ! High Reliability Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 2.0 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number KBJ2 .810(20.6) .770(19.6) .187(4.7) .148(3.8) 440(11.2) 420(10.7) +~~ .080(2.0) .065(1.65) .045(1.14) .035(0.90) .210(5.3) .190(4.8) _ .095(2.40) .065(1.65) .56(14.2) .50(12.7) .107(2.
