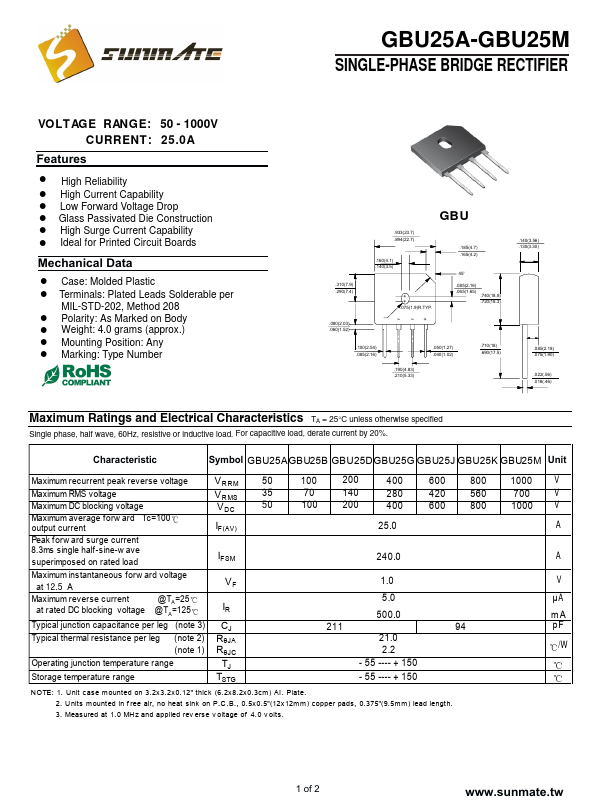

GBU25A - SINGLE-PHASE BRIDGE RECTIFIER

Sunmate

Datasheet Details

Part number	GBU25A
Manufacturer	Sunmate
File Size	1.15 MB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	GBU25A-Sunmate.pdf

! High Reliability ! High Current Capability ! Low Forward Voltage Drop ! Glass Passivated Die Construction ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 4.0 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number GBU .310(7.9) .290(7.4) .080(2.03) .060(1.52) .933(23.7) .894(22.7) .160(4.1) .140(3.5) + + .075(1.9)R. TYP. _.
