FSM21PT SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

FSM21PT Description

FSM21PT - FSM27PT SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

FSM21PT Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O B M e ch an ic a lD ata

📥 Download Datasheet

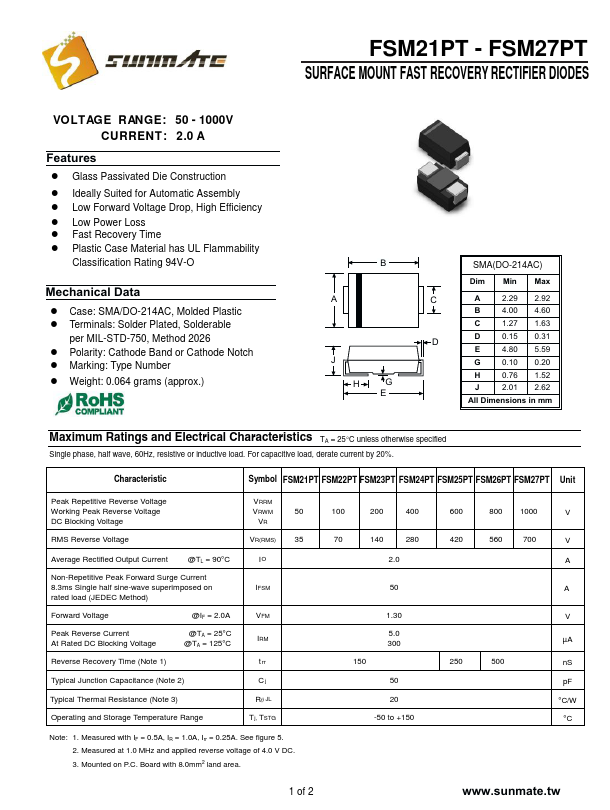

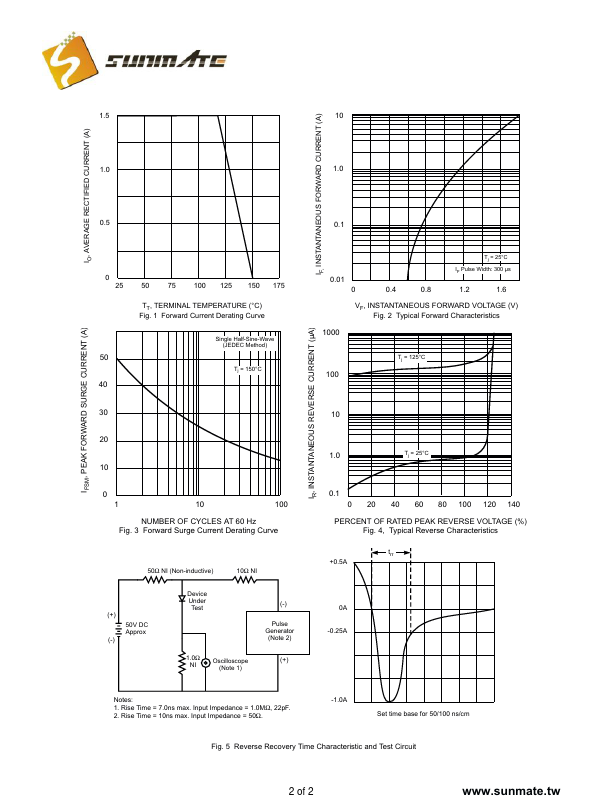

FSM21PT Datasheet Preview — Preview of FSM21PT PDF

Datasheet Details

Part number: FSM21PT
Manufacturer: Sunmate
File Size: 110.60 KB
Datasheet: FSM21PT-Sunmate.pdf
Description: SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
