FS3G - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Product Overview

Sunmate

Part number	FS3G
Manufacturer	Sunmate
File Size	390.59 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FS3G Datasheet
Note	This datasheet PDF includes multiple part numbers: FS3G, FS3A. Please refer to the document for exact specifications by model.

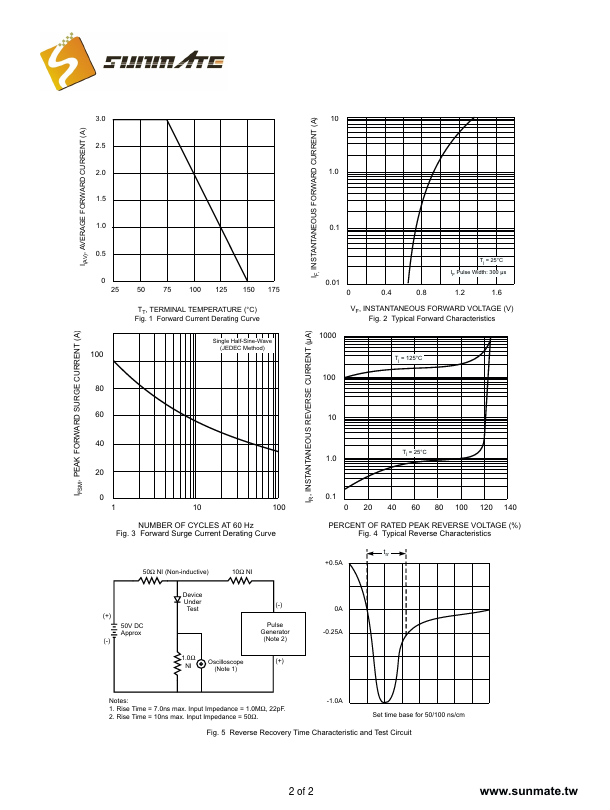

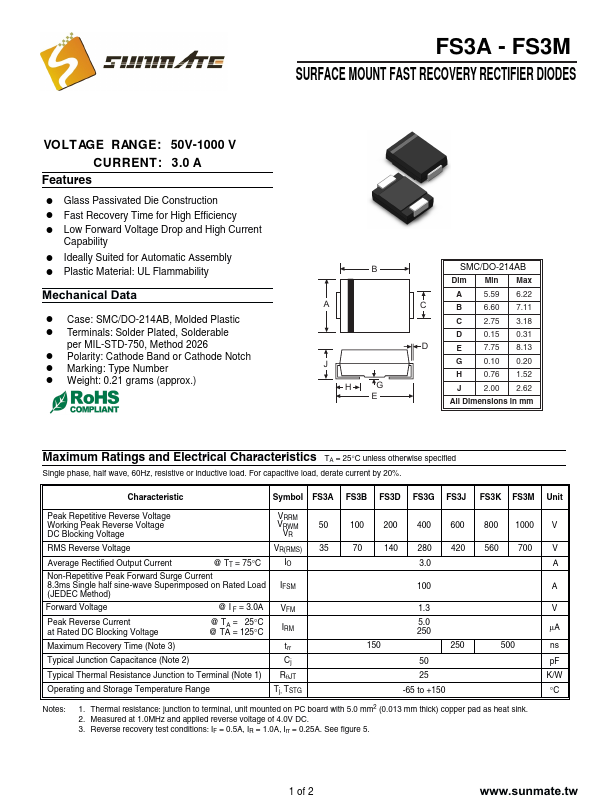

Additional preview pages of the FS3G datasheet.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A J H G E SMC/DO-214AB Dim Min Max A 5.59 6.22 C B 6.60 7.11.
