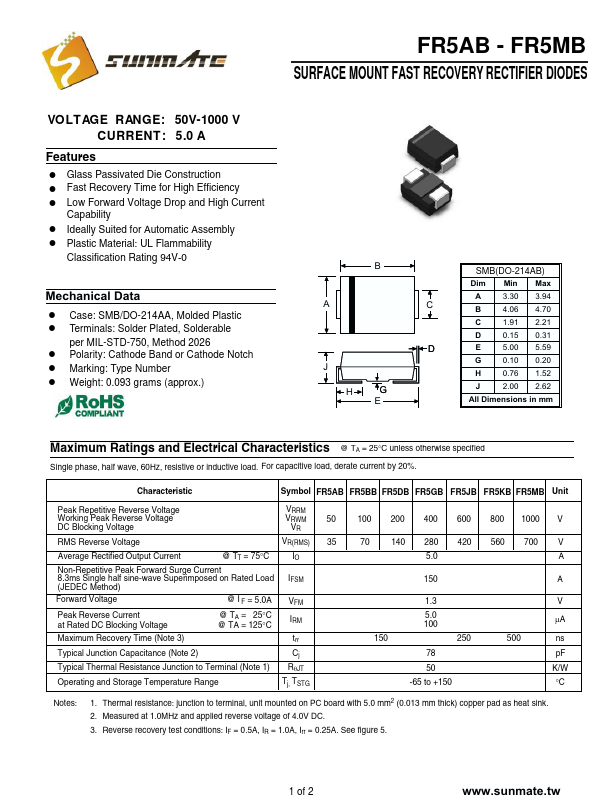

FR5JB, FR5AB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

FR5JB Description

FR5AB - FR5MB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 5.0 A .

FR5JB Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR5JB, FR5AB. Please refer to the document for exact specifications by model.

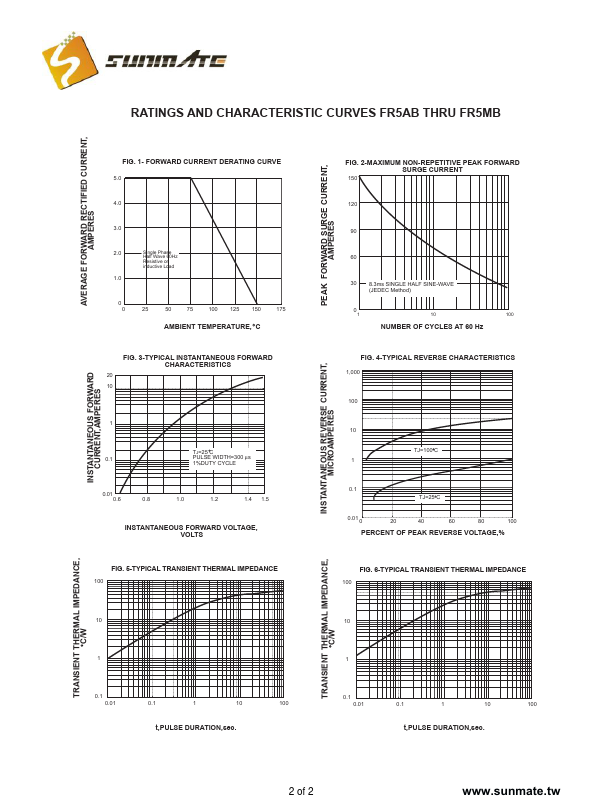

datasheet Preview Page 2

Datasheet Details

Part number
FR5JB, FR5AB
Manufacturer
Sunmate
File Size
258.49 KB
Datasheet
FR5AB-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR5JB, FR5AB.
Please refer to the document for exact specifications by model.
