FR3G, FR3A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

FR3G Description

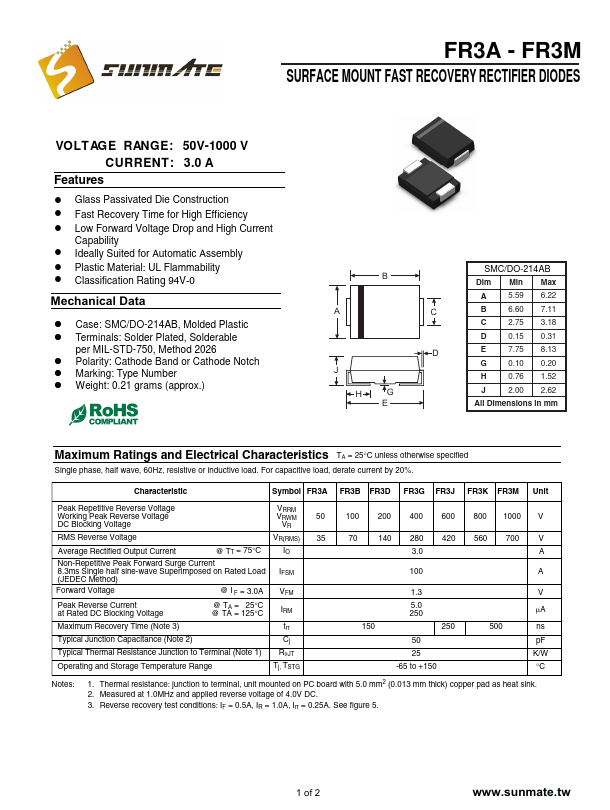

FR3A - FR3M SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 3.0 A .

FR3G Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Termina

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR3G, FR3A. Please refer to the document for exact specifications by model.

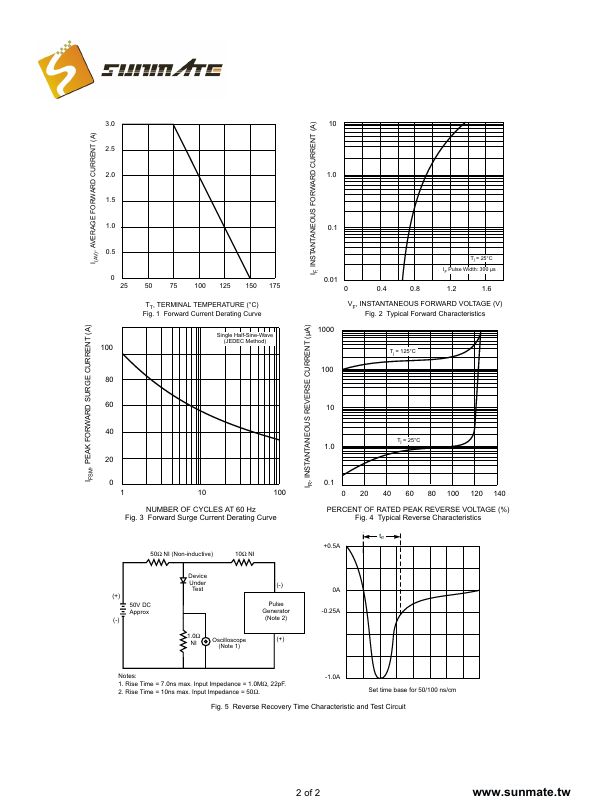

datasheet Preview Page 2

Datasheet Details

Part number
FR3G, FR3A
Manufacturer
Sunmate
File Size
560.45 KB
Datasheet
FR3A-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FR3G, FR3A.
Please refer to the document for exact specifications by model.
