FR3AB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

FR3AB Description

FR3AB - FR3MB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 3.0 A .

FR3AB Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMB(DO-214AA),Molded Plastic ! Termina

📥 Download Datasheet

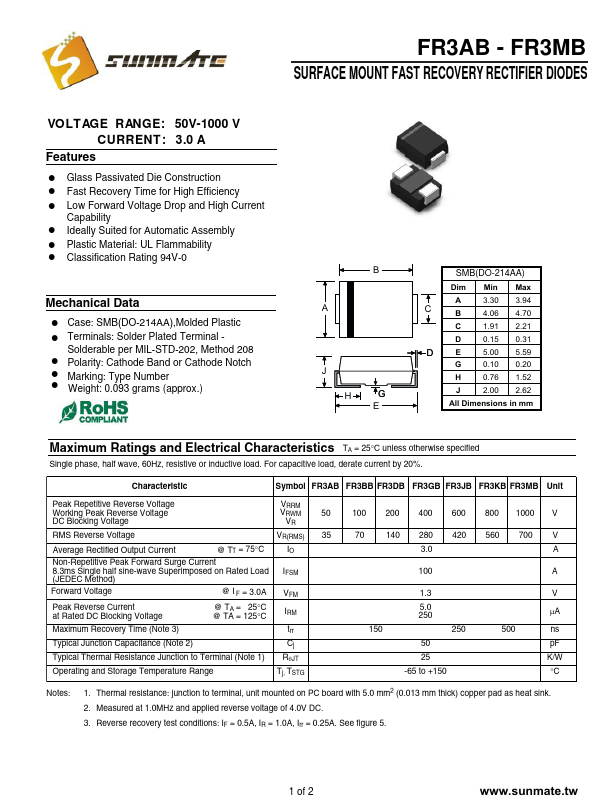

Preview of FR3AB PDF

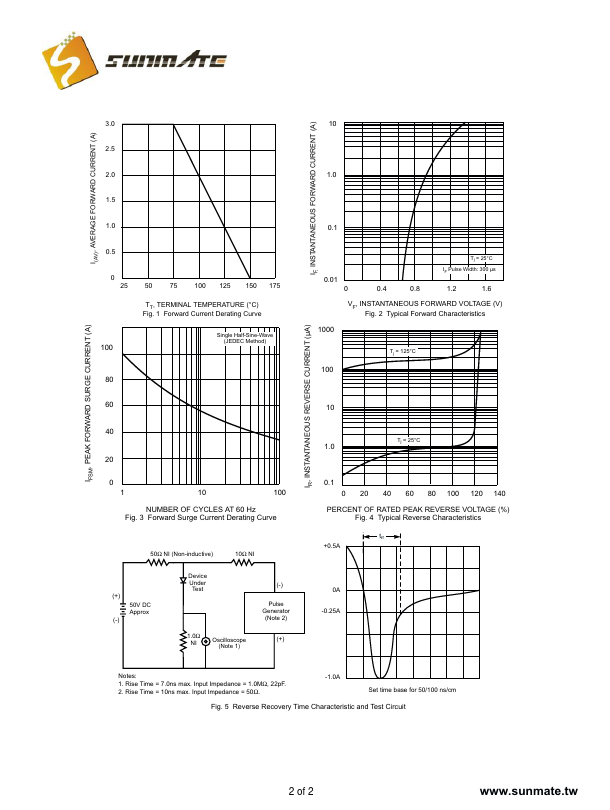

datasheet Preview Page 2

Datasheet Details

Part number
FR3AB
Manufacturer
Sunmate
File Size
106.63 KB
Datasheet
FR3AB-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
