ES5DF - SURFACE MOUNT SUPER FAST RECOVERY DIODES

Product Overview

Sunmate

📥 Download Datasheet

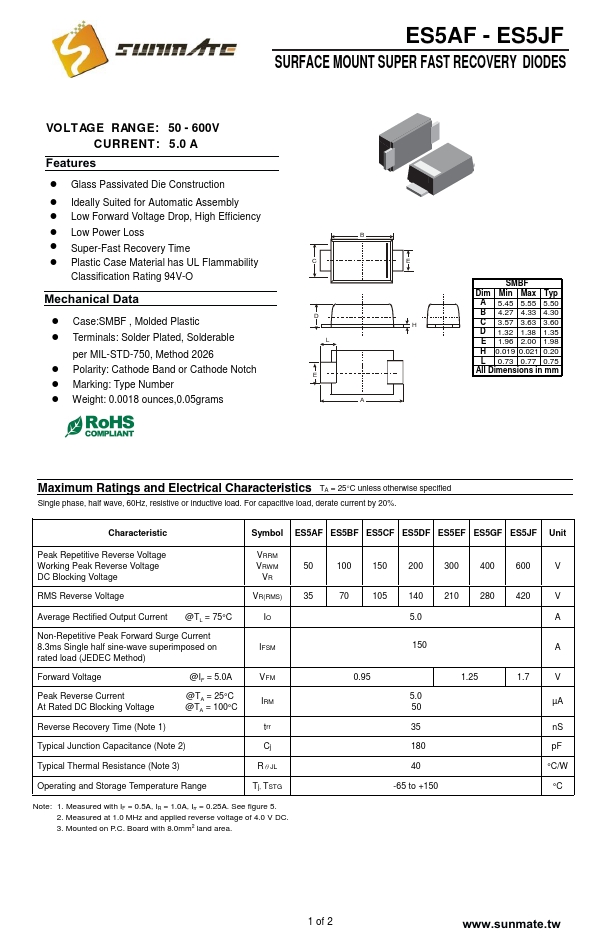

ES5DF SURFACE MOUNT SUPER FAST RECOVERY DIODES by Sunmate - Datasheet Preview — Datasheet preview – ES5DF

Datasheet Details

Part number	ES5DF
Manufacturer	Sunmate
File Size	493.48 KB
Description	SURFACE MOUNT SUPER FAST RECOVERY DIODES
Datasheet	ES5DF Datasheet
Note	This datasheet PDF includes multiple part numbers: ES5DF, ES5AF. Please refer to the document for exact specifications by model.

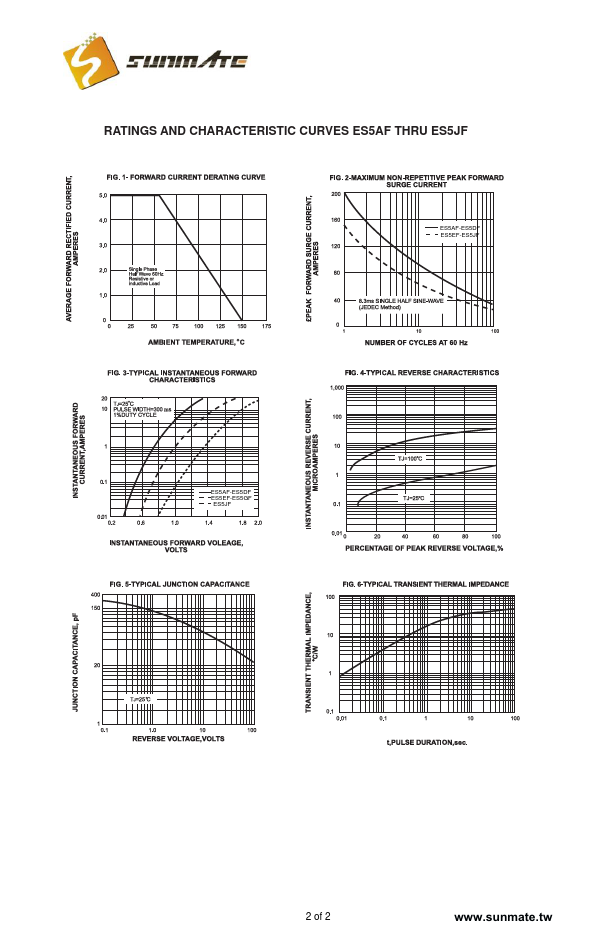

Additional preview pages of the ES5DF datasheet.

Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss B ! S u per-F a s t Reco v e ry Tim e ! Plastic Case Material has UL Flammability C E Classification Rating 94V-O Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-.
