DSR0.3K - SURFACE MOUNT RECTIFIER DIODES

Product Overview

Sunmate

Part number	DSR0.3K
Manufacturer	Sunmate
File Size	238.77 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	DSR0.3K Datasheet
Note	This datasheet PDF includes multiple part numbers: DSR0.3K, DSR0.3A. Please refer to the document for exact specifications by model.

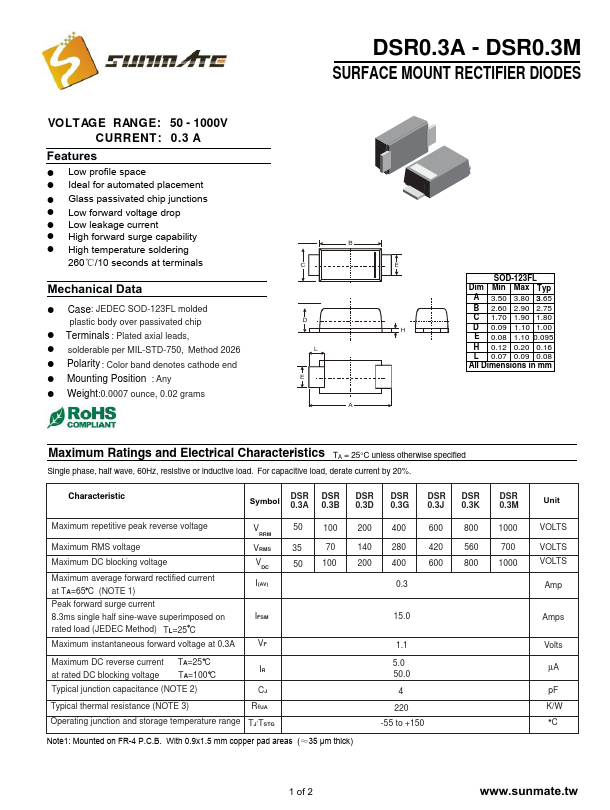

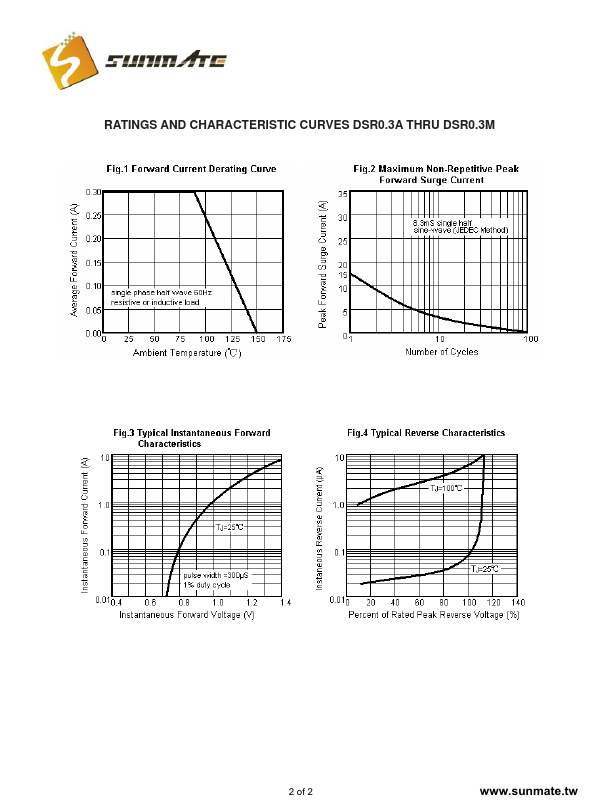

Additional preview pages of the DSR0.3K datasheet.

! Low profile space ! Ideal for automated placement ! Glass passivated chip junctions ! Low forward voltage drop ! Low leakage current ! High forward surge capability ! High temperature solder：ing 260℃/10 seconds at terminals Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads, ! solderable per MIL-STD-750, Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams DSR0.3A - DS.
