DB207S - SURFACE MOUNT BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	DB207S
Manufacturer	Sunmate
File Size	666.40 KB
Description	SURFACE MOUNT BRIDGE RECTIFIER
Datasheet	DB207S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB207S, DB201S. Please refer to the document for exact specifications by model.

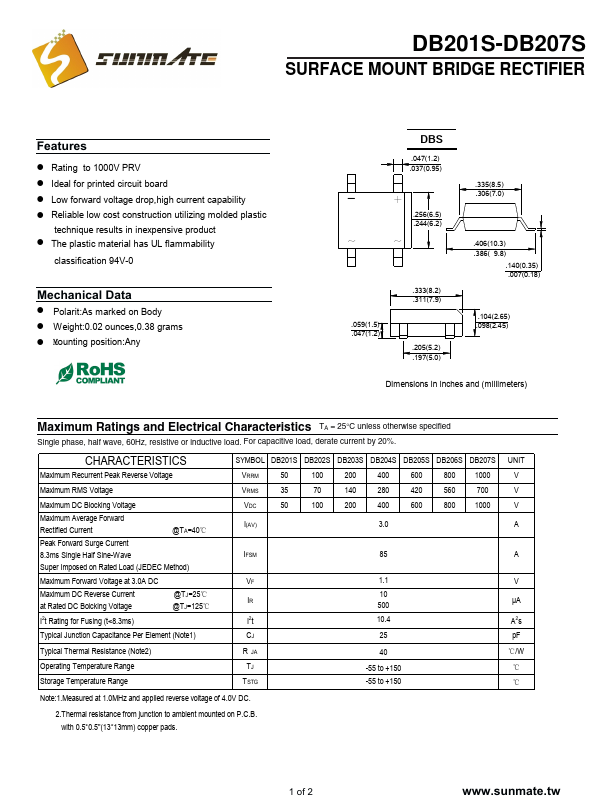

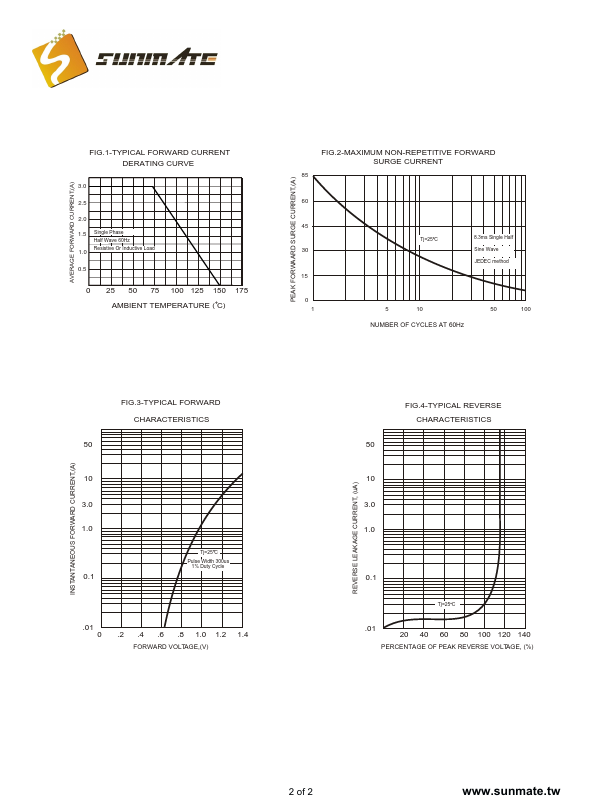

Additional preview pages of the DB207S datasheet.

! Rating to 1000V PRV ! Ideal for printed circuit board ! Low forward voltage drop,high current capability ! Reliable low cost construction utilizing molded plastic technique results in inexpensive product ! The plastic material has UL flammability classification 94V-0 Mechanical Data ! Polarit:As marked on Body ! Weight:0.02 ounces,0.38 grams ! Mounting position:Any DBS .047(1.2) .037(0.95) -+ .256(6.5) .244(6.2) ~~ .059(1.5) .047(1.2) .333(8.2) .311(7.9) .205(5.2) .197(5.0) .335(8.5) .306(.
