D4SB60 - SINGLE-PHASE BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	D4SB60
Manufacturer	Sunmate
File Size	1.85 MB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	D4SB60 Datasheet
Note	This datasheet PDF includes multiple part numbers: D4SB60, D4SB10. Please refer to the document for exact specifications by model.

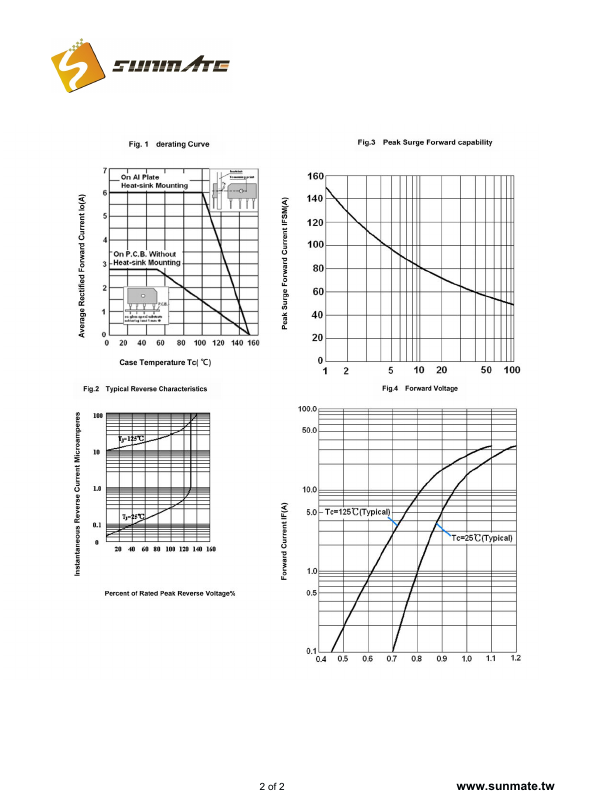

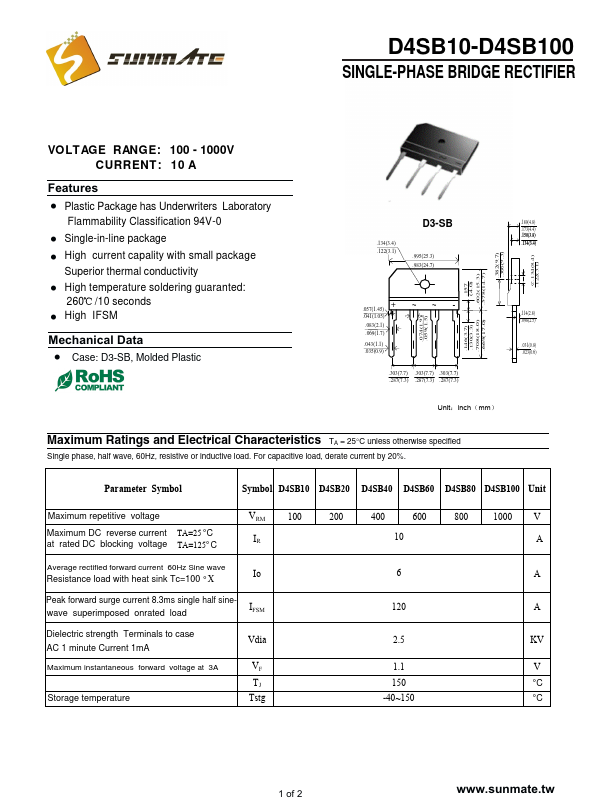

Additional preview pages of the D4SB60 datasheet.

Plastic Package has Underwriters Laboratory Flammability Classification 94V-0.
Single-in-line package.
High current capality with small package Superior thermal conductivity.
High temperature soldering guaranted: 260 /10 seconds.
High IFSM Mechanical Data.
Case: D3-SB, Molded Plastic .134(3.4) .122(3.1) D3-SB .995(25.3) .983(24.7) .189(4.8) .173(4.4) .150(3.8) .134(3.4) .157 (4.0) .602(15.3) .578(14.7) .382(9.7) .366(9.3) + ~~ - .057(1.45) .041(1.05) .083(2.1).
