BYG21K - FAST SILICON MESA SMD RECTIFIER DIODE

Sunmate

BYG21K Description

BYG21K - BYG21M FAST SILICON MESA SMD RECTIFIER DIODE VOLTAGE RANGE: 8 00 - 1000V CURRENT: 1.5 A .

BYG21K Features

* D Glass passivated junction D Low reverse current D Soft recovery characteristics D Fast reverse recovery time D Good switching characteristics D Wave and reflow solderable Mechanical Data D Case: SMA(DO-214AC), Molded Plastic D Terminals: Solderable per MIL-STD-202, Method 208 D Polarity: Cathode B

📥 Download Datasheet

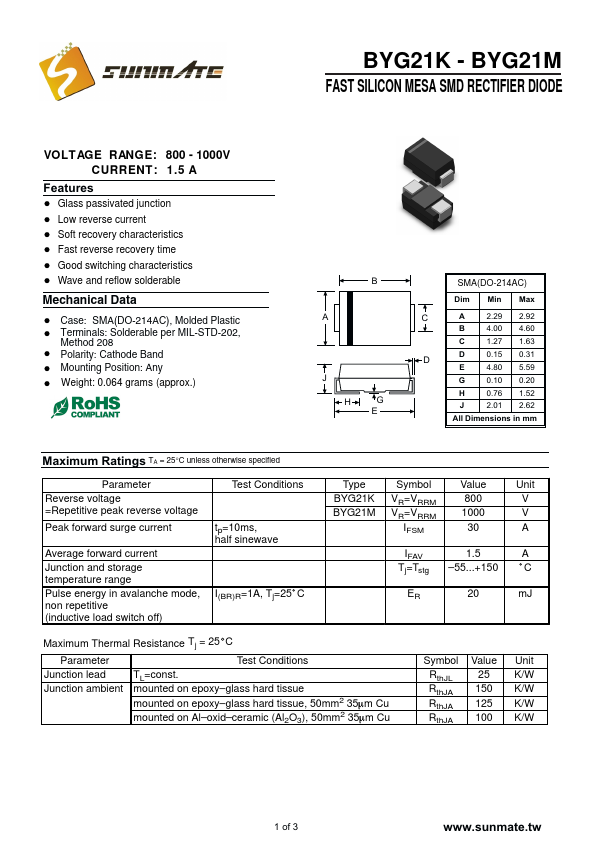

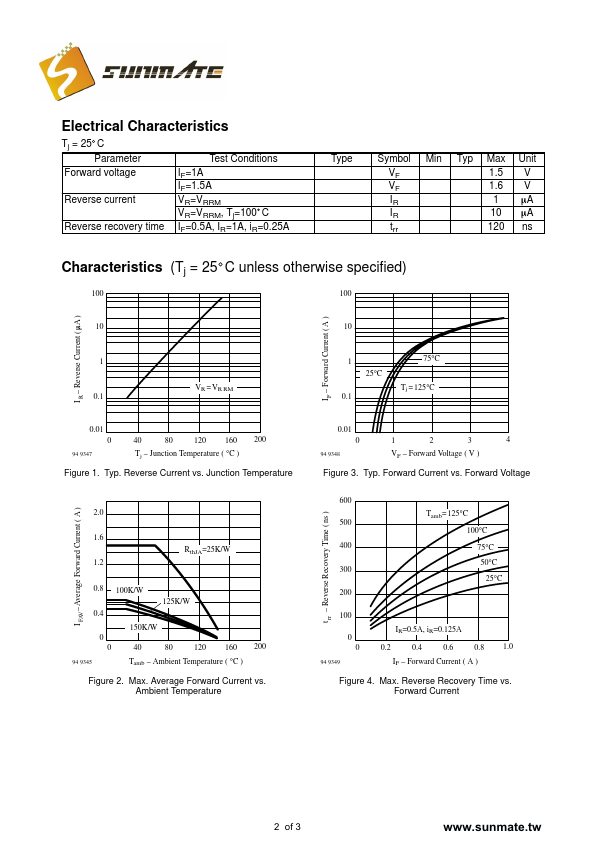

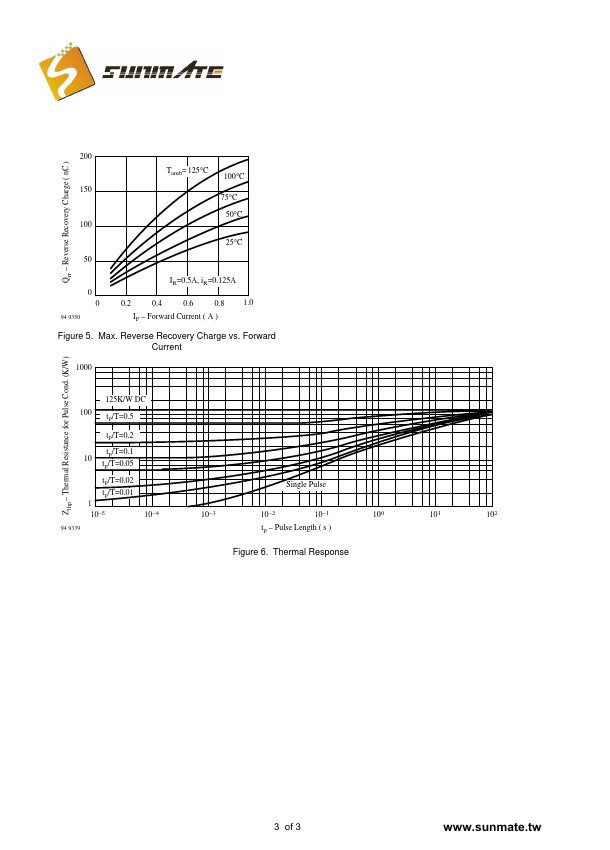

BYG21K Datasheet Preview — Preview of BYG21K PDF

Datasheet Details

Part number: BYG21K
Manufacturer: Sunmate
File Size: 793.02 KB
Datasheet: BYG21K-Sunmate.pdf
Description: FAST SILICON MESA SMD RECTIFIER DIODE
