BR1005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

BR1005 Description

BR1005-BR1010 SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 10 A .

BR1005 Features

* ! Low cost ! Low forward voltage ! Low leakage current Mechanical Data ! Case: Molded plastic body ! Terminal: Lead solderable per MIL-STD-202E method 208C. ! Polarity: Polarity symbols molded on case ! Mounting position: Any ! Weight:0. 20ounce, 5.62 grams BR-10 .296(7.5) .255(6.5) .052(1.3) DIA.

📥 Download Datasheet

Preview of BR1005 PDF

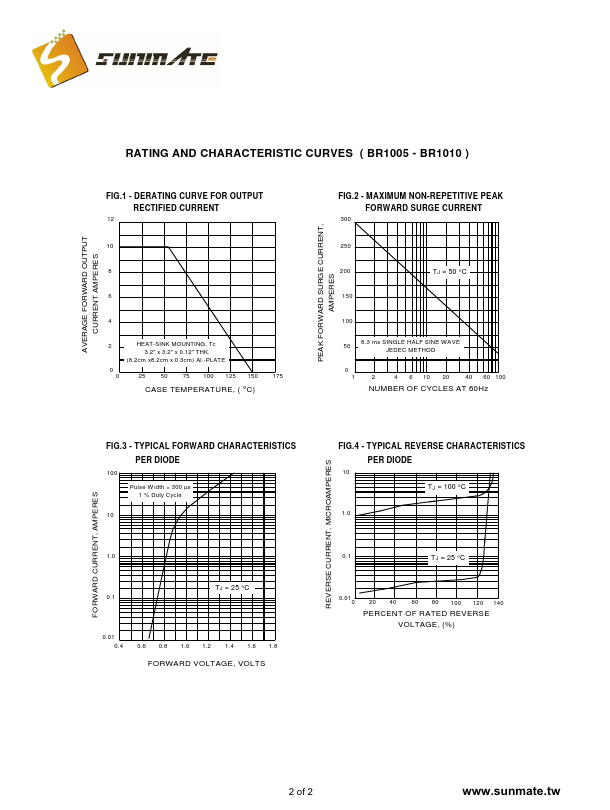

datasheet Preview Page 2

Datasheet Details

Part number
BR1005
Manufacturer
Sunmate
File Size
451.71 KB
Datasheet
BR1005-Sunmate.pdf
Description
SINGLE-PHASE SILICON BRIDGE RECTIFIER
