BAV19, BAV17 - SMALL SIGAL SWITCHING DIODES

Sunmate

Datasheet Details

Part number: BAV19, BAV17
Manufacturer: Sunmate
File Size: 602.72 KB
Datasheet: BAV17-Sunmate.pdf
Description: SMALL SIGAL SWITCHING DIODES
Note: This datasheet PDF includes multiple part numbers: BAV19, BAV17.
Please refer to the document for exact specifications by model.

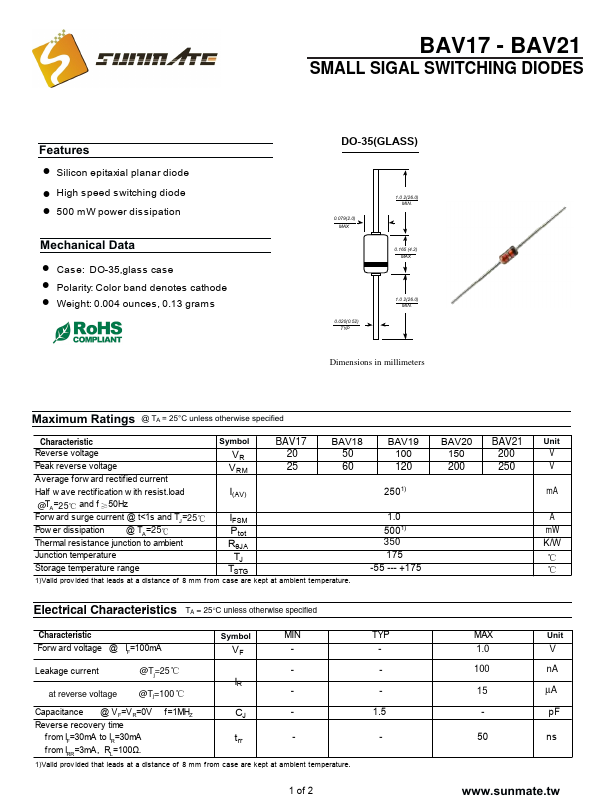

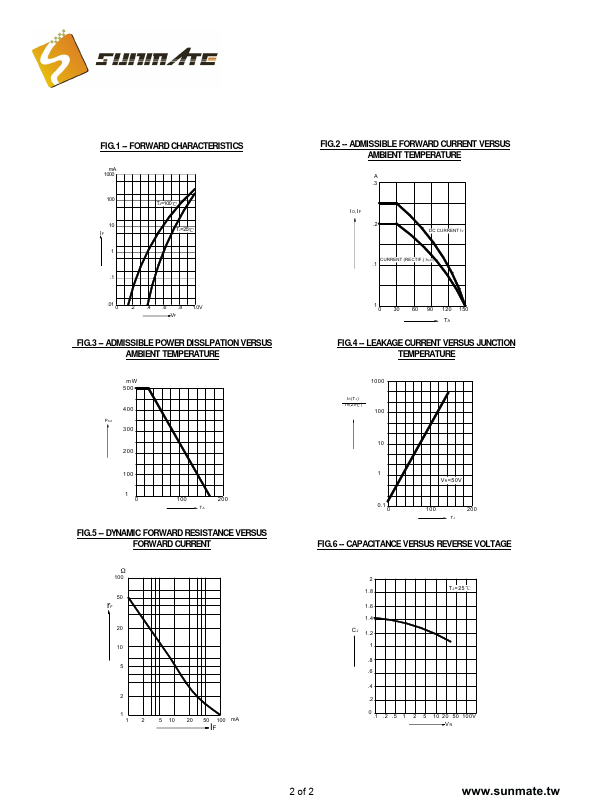

! Silicon epitaxial planar diode ! High speed switching diode ! 500 m W power dissipation Mechanical Data ! Case: DO-35,glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 gram s DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol BAV17 BAV18 Reverse voltage Peak reverse voltage Average forw ard rectified current.
