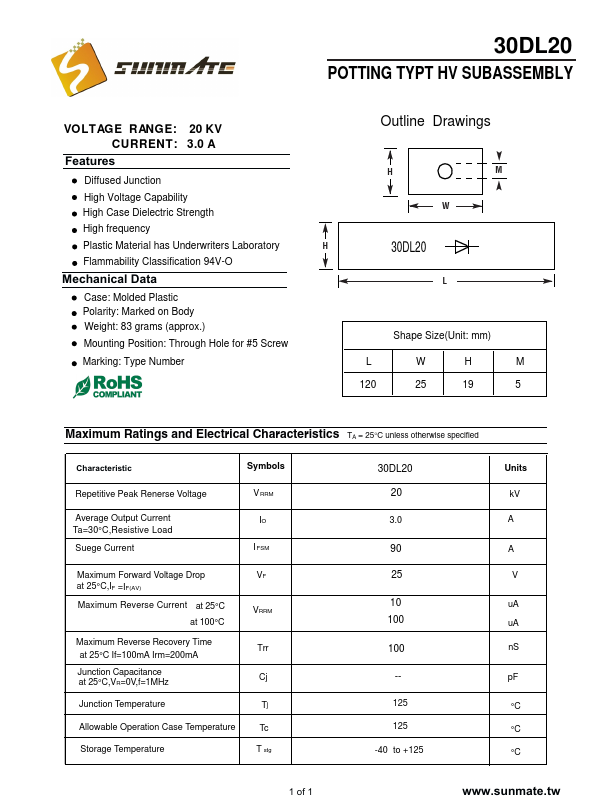

30DL20 - POTTING TYPT HV SUBASSEMBLY

Sunmate

Datasheet Details

Diffused Junction High Voltage Capability High Case Dielectric Strength High frequency Plastic Material has Underwriters Laboratory Flammability Classification 94V-O Mechanical Data Case: Molded Plastic Polarity: Marked on Body Weight: 83 grams (approx. ) Mounting Position: Through Hole for #5 Screw Marking: Type Number Outline Drawings H M W H 30DL20 L Shape Size(Unit: mm) L W H M 120 25 19 5 Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Ch.
