20DL20-1 - POTTING TYPT HV SUBASSEMBLY

Name: 20DL20-1
SKU: 20DL20-1-1589966

Sunmate

The 20DL20-1 by Sunmate is a POTTING TYPT HV SUBASSEMBLY. Below is the official datasheet preview.

Datasheet Details

Part number	20DL20-1
Manufacturer	Sunmate
File Size	432.94 KB
Description	POTTING TYPT HV SUBASSEMBLY
Datasheet	20DL20-1-Sunmate.pdf

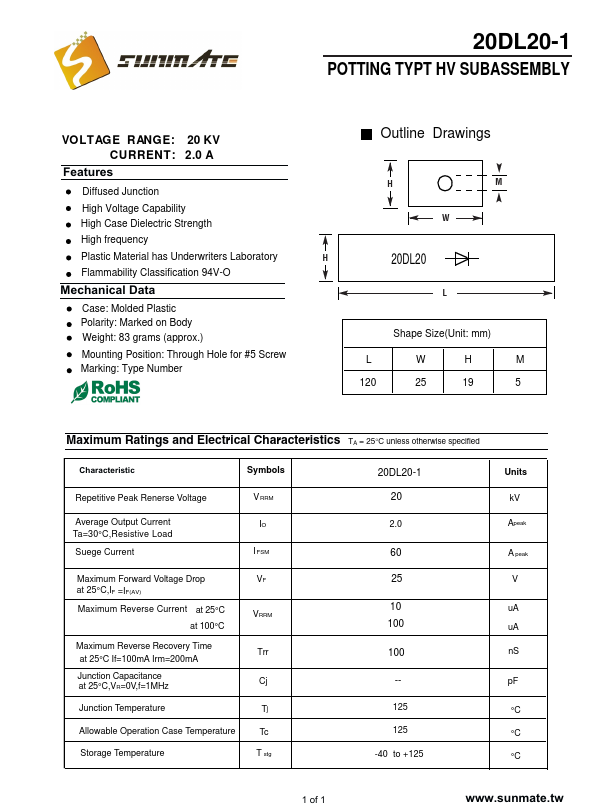

Additional preview pages of the 20DL20-1 datasheet.

Diffused Junction High Voltage Capability High Case Dielectric Strength High frequency Plastic Material has Underwriters Laboratory Flammability Classification 94V-O Mechanical Data Case: Molded Plastic Polarity: Marked on Body Weight: 83 grams (approx. ) Mounting Position: Through Hole for #5 Screw Marking: Type Number Outline Drawings H M W H 20DL20 L Shape Size(Unit: mm) L W H M 120 25 19 5 Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Ch.
